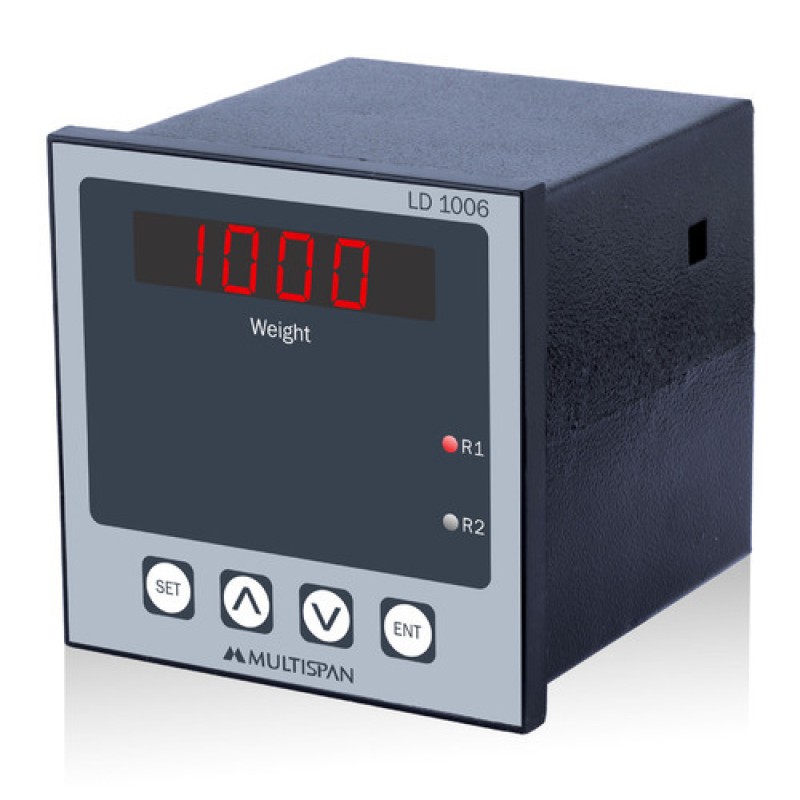

MODEL

PIC-1006

Dimension (HxWxD) mm

96 X 96 X 100

Panel Cutout (mm)

92 X 92

Display

Single Display: 7 segment, 6 digit 0.56" RED LED display - Weight

Input Signal

0-20mV / 4-20mA

Range

0 to 9999 (Configurable)

Control output

1or 2- Relay

Retransmission

0 -10 V DC / 4 - 20 mA DC (Factory Set) 10V DC

Excitation

10 V DC

Resolution

0.000 / 00.00 / 000.0 / 0000 (Configurable)

Accuracy

±1% of FSD

Power Supply

230V AC ±10%, 50 Hz (linear power supply)

Indicator

"OuEr" - If Input Signal is more than Maximum Input "LOW" - If Input Signal is less than Minimum Input "0000" - If there is No Input Signal

Enclosure Material

Metal

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing
