Description Of Chartless Recorder / Paperless Datalogger:

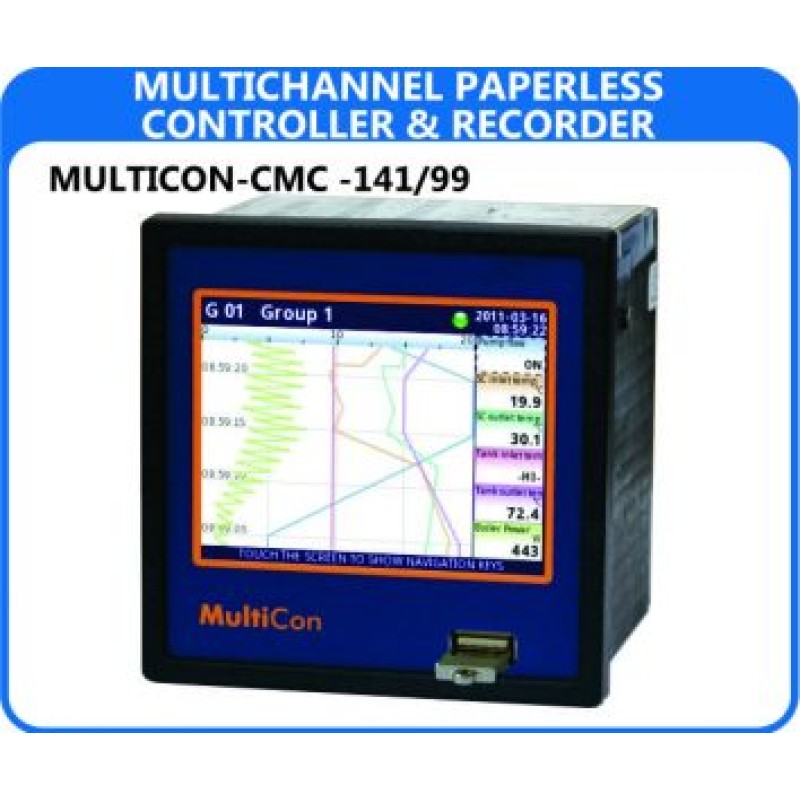

This Chartless Recorder works as a Paperless data logger or paperless recorder. The MultiCon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data if the recording function is requested and activated.

The MultiCon CMC 141 is CMC-99’s bigger brother. It has all features included in CMC-99, but in addition, it has a bigger display, more inputs/outputs, and even more logic channels. The casing depth is still only 100 mm.

The Multicon CMCs are powerful and versatile compact-multichannel-controllers with a capability to record data, if the recording function is requested and activated.They are one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of set-points, excitations and current state of controlled objects. Based on Linux firmware, they are stable and the touch screen makes configuration easy and comfortable and data presentation is also readable and attractive.

Although the Multicon CMC-99 / 141 is build in a quite small housing, it can integrate up to 72 inputs, and its construction allows user almost free configuration by choosing up to 3 from 30 available input/output modules. The device can simultaneously record all build-in logical channels, and is capable to record data with maximum speed 10Hz (ten samples per second, with some limitation of number of recorded channels). 1.5GB of internal data memory is enough for continuous recording of all channels with a speed of 1 sample per second (each channel) for over 2 months (125 000 000 samples in total!). An operator can download stored data using a USB flash disk or via Ethernet.

Salient Features Of Chartless Recorder / Paperless Data Logger:

• Compact multichannel controller with data logging capabilities
• 48 analog / digital inputs max.
• 8 current or 16 relay / SSR outputs max.
• touchscreen 3.5″ TFT, 320 x 240 pixels.
• 24 thermocouple / 12 RTD inputs max.
