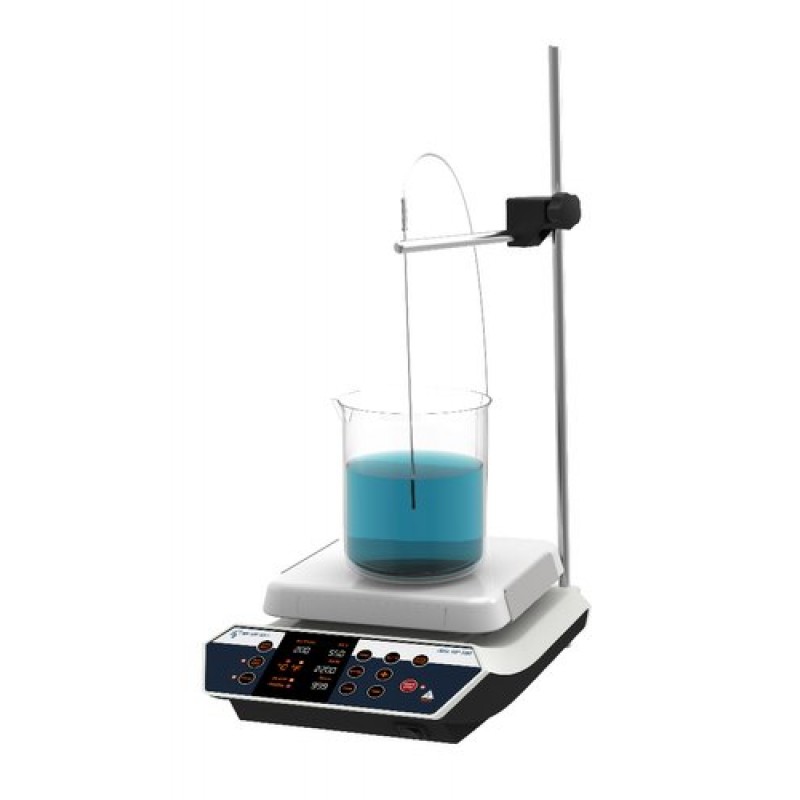

Premium Digital Hot Plate Stirrer
Salient Features:
- Brushless motor for a long maintenance-free life
- Stirring speeds upto 2200 RPM allows easy stirring of even highly viscous liquids
- Maximum temperature upto 550°C from room temperature, Accuracy:±1°C
- Timer range: 1 to 999 min. and infinite mode
- 3 intelligent heating modes to suite your precision requirements
- Auto Restart Mode: Restarts the hotplate after power is restored with same parameters
- Capacity upto 20L suitable for large batches of samples
- Robust nanocrystaline ceramic heating plate offers high resistance to chemical & temperature shocks
- Isolated electric components with a safe drain channel for accidental spillage
- Safe temperature setting to prevent temperature to raise beyond set limits irrespective of situation
- Slip detection feature prevents escaping of stir bar & ensures constant mixing of even viscous samples
- Keypad lock to prevent accidental changes of parameters
- Option of selecting temperature units: °C/ °F
- Dedicated Display for both Set & Actual Temperature
- PT-1000 temperature sensor generates error codes pertaining to it’s contact with the media.
- Option to select plate or probe temperature display
- Pulse mode for thorough stirring of media by changing the direction of stirring
- Program mode enables user to store upto 99 different programs
Specifications :
Cat. No. | 3004 300 |
Motor Type | BLDC Motor |
Number of Stirring positions | 1 |
Stirring Quantity | 20 L (Max.) |
Stirring Bar Length | 25 mm (Max.) |
Heating Temperature Range | Room Temperature to 550°C |
Speed Control | 10 RPM/Step |
Set-up Pate Material | Ceramic |
Protection Class | IP21 |
Communication | RS232 interface |
Timer Advances Series | 1 min to 999 min |
Programmable Pulse | 30 to 99 Sec. |
Set-up Plate Dimensions | 180X180 mm |
Unit Dimensions | 330X220X115 mm |
Weight | 5.4 kg |
