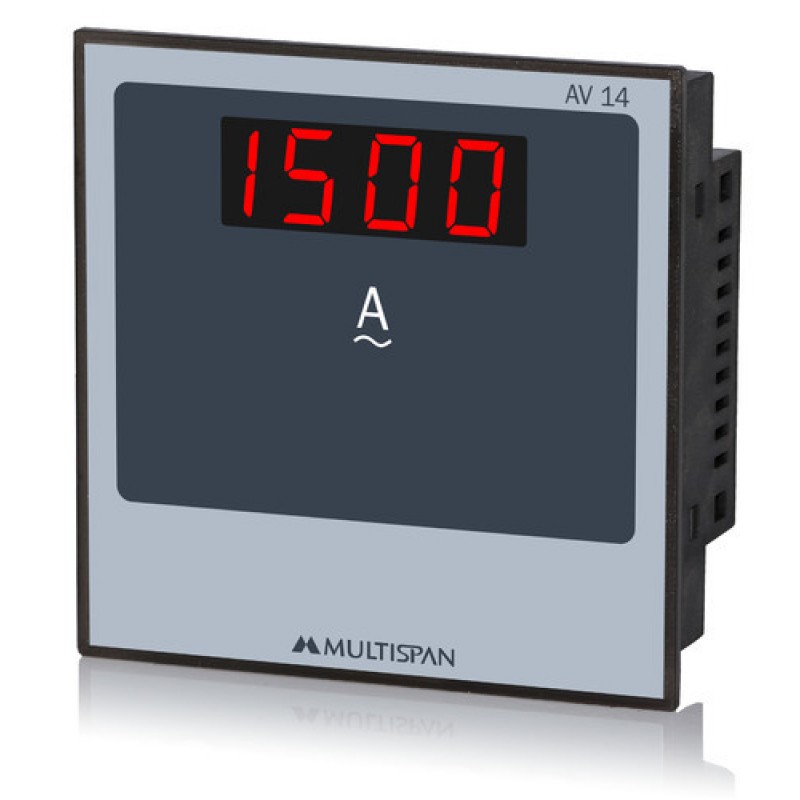

MODEL

Dimension (HxWxD) mm Panel Cutout (mm)

AV-11 AV-21 AV-31

96 X 96 X 50 72 X 72 X 60 48 X 96 X 55

92 X 92 68 X 68 44 X 92

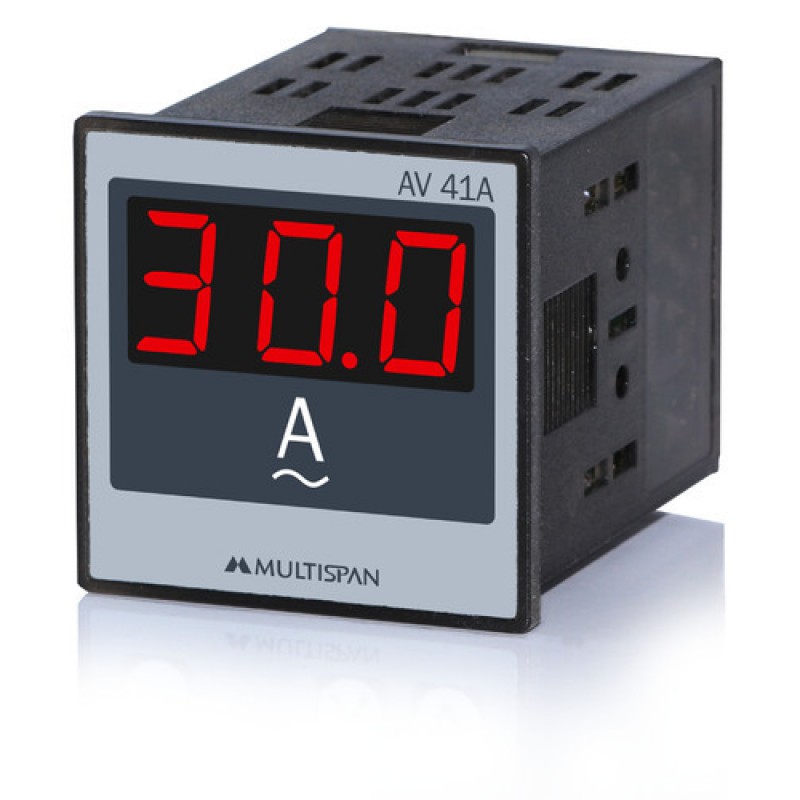

AV-41

48 X 48 X 60

44 X 44

Display

Single : 7 segment, 3 digit 0.56', RED LED display

PARAMETERS

Voltage(DC) Voltage(AC) Ampere(DC)

Ampere(AC) TrnnrnTiniM

99.9V DC / 999V DC (factory set) 0-500V AC

Measures 5A, 10A, 20A (With shunt)

(0~999A range)(through external shunt of 75 mv DC)

30A AC Direct

CT selection by key & CT ratio: 5/5~ 2000/5 Amp AC (Configurable)

Power supply Indication

230V AC ±10%, 50 Hz KA Indication

Enclosure Material Operating Ambient Temp Relative Humidity

Plastic

0°C - 55°C

upto 95 % Non Condensing

NOTE:

750VAC available as per requirement
