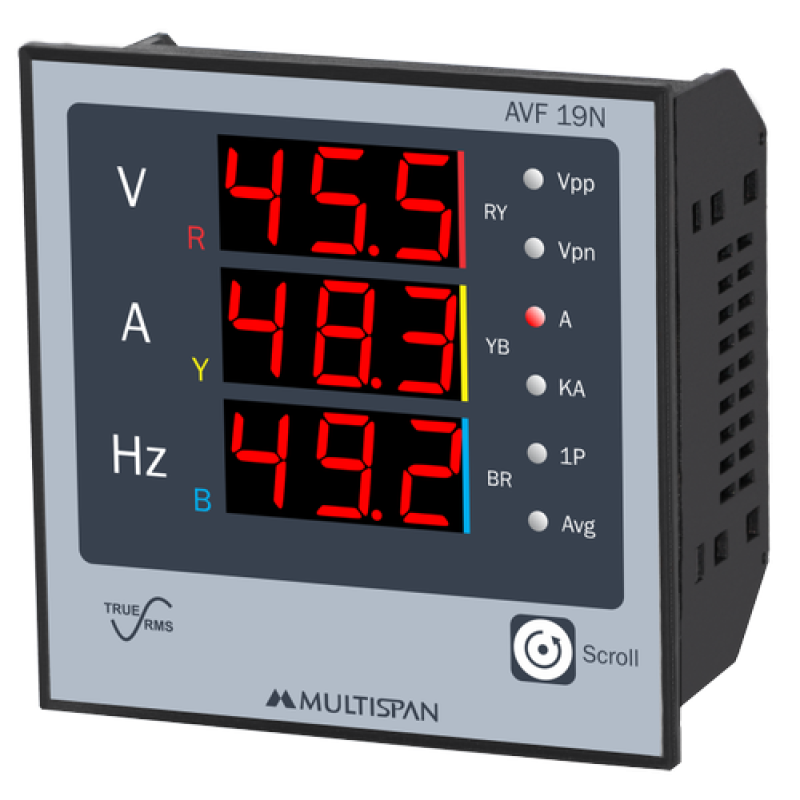

3 Phase AVF Meter
Product Details :
| Brand | Multispan |
| Dimension | 96 (H) X 96 (W) X 52 (D) mm |
| Accuracy | Class 1.0 |
| Auxiliary Supply | 100-250V AC,50/60 Hz |
| Mounting Type | Panel Mount |
| Electrical Connection | 3 Phase-3 Wire, 3 Phase-4 Wire, 1 Phase-2 Wire |
Calculated Parameter | Voltage: VLL ,VLN , Average Current: All Phase Current (IR , IY , IB) , Average Frequency: System Frequency |
Electrical Connection | 3Ø-3W, 3Ø-4W,1Ø-2W |
Display | 3 Digit, 3 Line, 7 Segment 0.56” RED LED |
Dimension | 96 (H) X 96 (W) X 52 (D) mm |
Accuracy | Class 1.0 |
Operating Voltage | 50-500V AC(L-L), 30-300V AC(L-N) |
Operating Current (Secondary CT) | 0.5 to 5 Amp |
Primary CT | 5 A to 6000 Amp Selectable |
Auxiliary Supply | 100-250V AC,50/60 Hz |
Mounting Type | Panel Mount |
3 Phase AVF Meter
- Views: 152
-
Multispan Control Instruments Private Limited - Product Code: MCIPL00003
- Availability: In Stock
- ₹0
Seller information
Multispan Control Instruments Pr
- Multispan Control Instruments Private Limited
- https://www.multispanindia.com/
- Ahmedabad, India
- Business Type :Manufacturer, Service Provider
