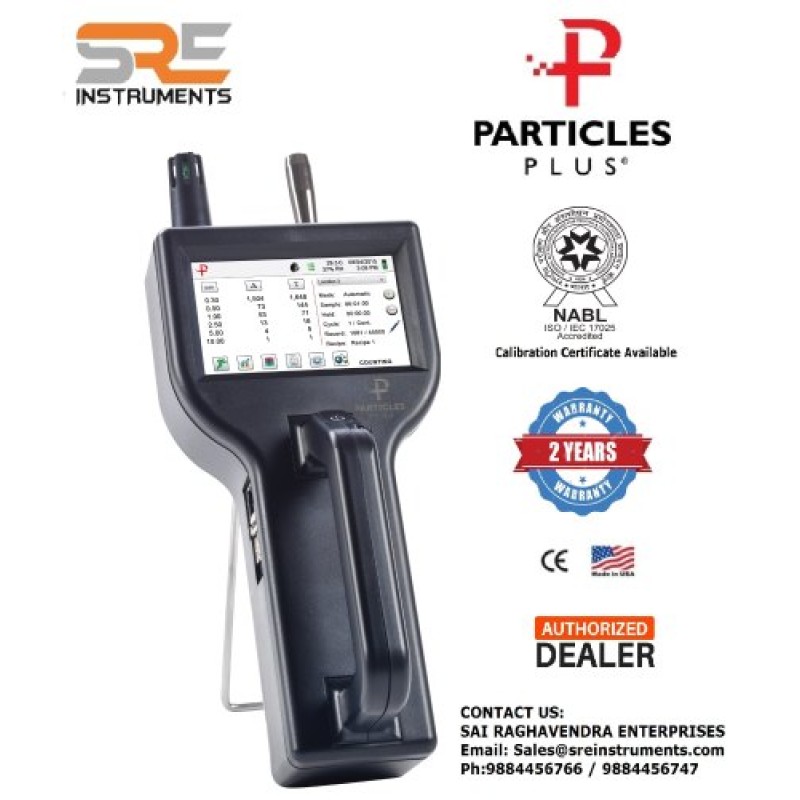

Handhled Laser Particle Counter

Product Specification:

Brand	Particles Plus
Usage/Application	Laboratory
Model Name/Number	8506
Size	0.5 to 25.0Mum
Power	110 to 240VAC 50/60Hz universal in-line power supply
Size Channels	Factory calibrated at 0.5, 0.7, 1.0, 3.0, 5.0, 10.0Mum variable binning
Flow Rate	2.8LPM (0.1CFM)
Concentration Limit	30,000,000 Particles/ft3 @ 5% coincidence loss
Battery Run Time	10h
Light Source	Long life laser diode
Counting Efficiency	50% @ 0.5Mum; 100% for particles >0.75Mum per JIS
Zero Count	<1count/60minutes(<1particles/6ft3)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, mass concentration, count or concentrat
Count Alarms	1 to 9,999,999 counts
Display	4.3" (10.9cm) WQVGA (480x272) color touch screen
Printer (Optional)	External thermal printer
Vacuum Source	Internal pump with automatic flow control
Filtered Exhaust	Internal HEPA filter
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Audible Alarm	Adjustable built-in alarm
Battery	Removable Li-ion
Battery Recharge Time	4h within instrument (<2h with external battery charger)
Reports	ISO 14644-1, EU GMP Annex 1, FS 209E
Recipes	50 user-configurable recipes
Communication Modes	Ethernet and USB
Optional Communication Modes	Wireless 802.11 b/g, RS485 or RS232
Alarm	Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	High impact injection molded plastic
Dimensions	10" x 5" x 4.5" (25.4 x 12.9 x 11.4cm) includes handle and does not include probes
Weight	2.2lb (1.0kg)
Sample Locations	Up to 1,000 locations 20 characters long
Sample Time	1s to 99h
Warranty	2 Years. Extended warranties available.
Operating Conditions	41-104 Degree Fahrenheit(5-40 Degree Celsius)/20-90% non condensing
Storage Conditions	32-122 Degree Fahrenheit(0-50 Degree Celsius)/ 98% non condensing

Product Description

Product Details:-

• The Particles Plus 8506 Handheld Particle Counter measures 0.5 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
• Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® data-download software. Particles Plus® counters can be controlled and monitored remotely via web browser. The 8506 also has a mass concentration mode that approximates density in μg/m³.

• All Particles Plus® counters meet ISO 21501-4 and JIS B9921. The 8506 ensures compliance with an on-board pulse height analyzer.

• Accessories	Operating manual on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply & cable
  Optional Accessories	Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes
  Buffer Memory	45,000 sample records (rotating buffer) including particle count data, environmental data, locations and times. Scrollable on screen or printout

Features & Benefits

• Measures 0.5 μm to 25.0 μm

  0.1 CFM (2.83 LPM) flow rate

  Long-life laser diode technology

  Measures up to 6 channels of simultaneous data

  Approximates mass concentration in μg/m³

  Integrated handle for one-handed operation

  Large easy-to-use icon driven color touch screen display

  Temperature and relative humidity probe included

  Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes

  Easy configuration and transferable from instrument to instrument

  Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232

  Displays and externally prints reports for ISO 14644-1, EU GMP Annex 1 and FS 209E

  Internal audible alarm

  User-definable reports

  User-selectable channel sizes

  Complies with ISO 21501-4 and JIS B9921 standards

  Easy to clean and wipe down with minimal particle traps

  Seamless integration into a facility monitoring system

  Lightweight high-impact injection molded plastic enclosure

  2 year warranty. Extended warranties available.
