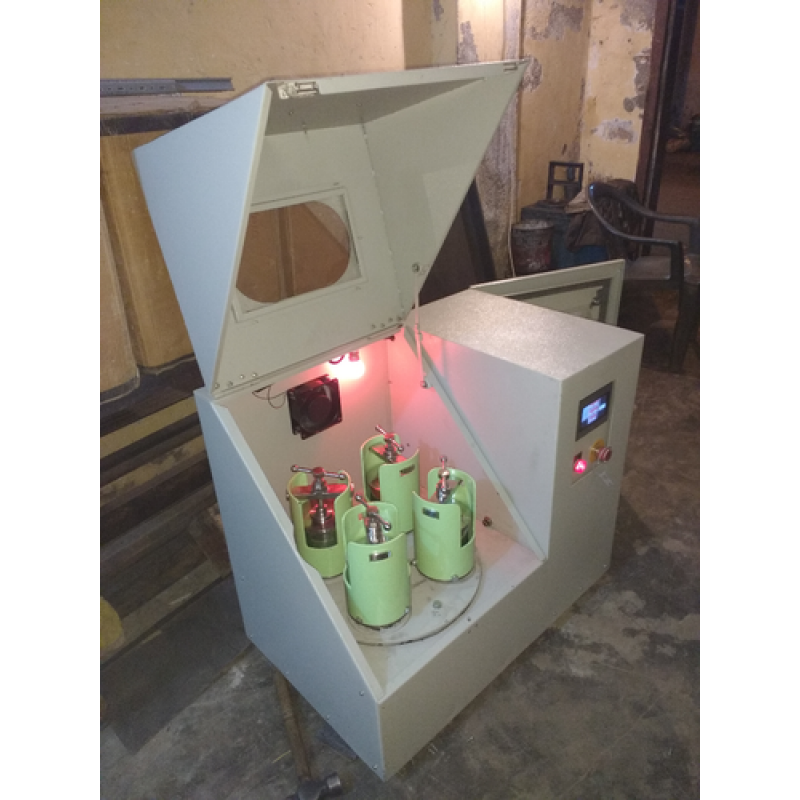

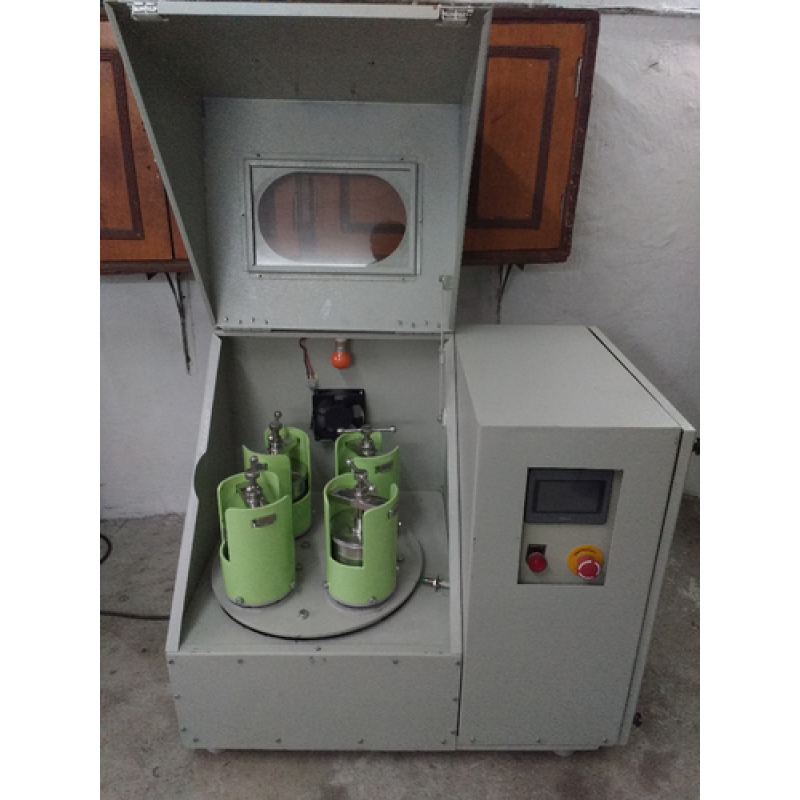

PLANETARY BALL MILL

 Model No.: AI-PB-14

 Make: AMAZE INSTRUMENTS

Parameters

 Specification

Application

 Milling, Mixing, Mechanical alloying, Size reduction, Pulverizing, Homogenizing, Colloidal milling etc.

Feed material

 Up to 10 mm.

Final fineness

< 1µ m

No. of working station

2 or 4

Effective dia. of the main(sun) disk

400 mm

Main (sun) disk speed

400 rpm. (Sleeplessly and instantaneously variable by A.C. Control drive)

Direction reversal

Alternate direction

Grinding process

Wet or Dry.

Transmission ratio

1: - 2

Operation Mode

2 or 4 grinding jars working simultaneously.
