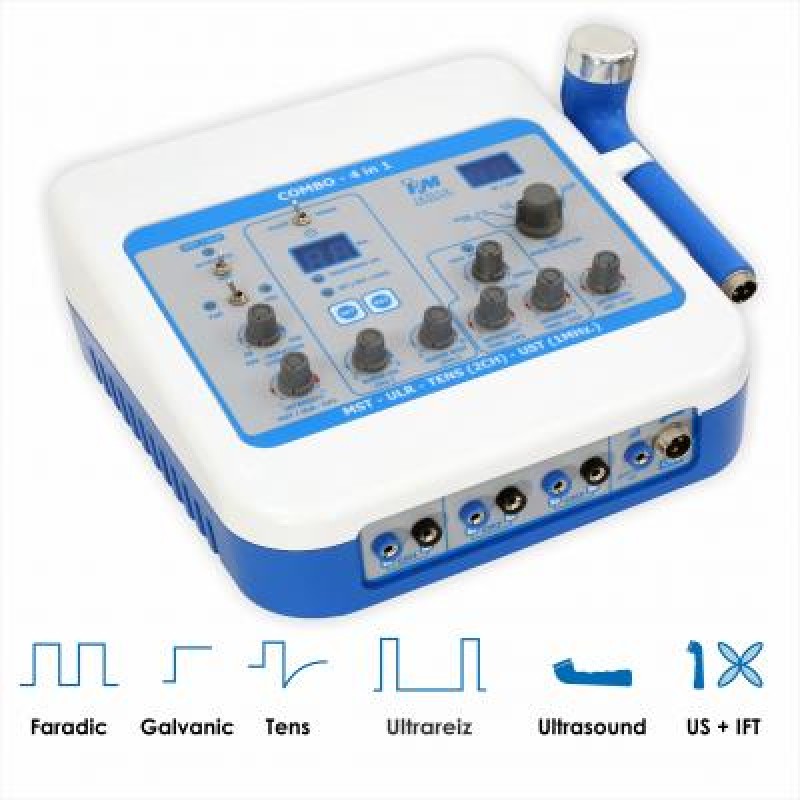

S-Dual Channel, MST, Ultrareiz-Single Channel + 1 MHz Ultrasound

Product Details :

Combination therapy involves simultaneous application of ultrasound (US) with an IFT ensuring accurate localisation of ultrasound treatment to provide increased accuracy / effectiveness in treating deeper lesions, treating trigger points.

Specification

• Galvanic - Plain
• Direct DC Current

Galvanic - Intermittent

• Frequency 1 HZ
• Pulse Width - Duration of 30 m Sec to 300m Sec (Cont. Adjustable)

Faradic ­- Plain

• Frequency - 50 Hz
• Pulse Width - 0.7 mS

Faradic - Surge

• Frequency - 50 Hz (Fixed)
• Pulse Width - 0.7 mS (Fixed)
• Surge On/Off Time - (1 - 9) Continues Adjustable

Ultrareiz Current - Continous

• Frequency - 143 Hz. (Fixed)
• Pulse Width On Time - 2 mS. (Fixed)
• Pulse Width Off Time - 5 mS. (Fixed)

Ultrareiz Current - Intermittent

• Frequency - 143 Hz. (Fixed)
• Pulse Width On Time - 2 mS. (Fixed)
• Pulse Width Off Time - 5 mS. (Fixed)
• Surge On/Off time 1 - 9 Sec (cont. Adj)

Tens - Continous

• Frequency 2Hz to 250Hz
• Pulse width 400m Sec
• Wave shape B-Phase
• LED Indicates frequency level

Tens - Intermittent

• Frequency 2Hz to 250Hz
• Pulse width 400m Sec
• Wave shape B-Phase
• LED Indicates frequency level
• Surge On/Rest time 1 to 9 Sec (cont. Adj)

Ultrasound

• Therapy Mode - Continuous / Pulsed
• Pulse Mode - 1 : 1, 1 : 2, 1 : 4, 1 : 8, 1 : 16
• Output Power - 15W in Continuous / 21W in Pulsed
• Digital Output Meter - Display Meter indicate the output power in W/cm2
• Intensity - Maximum power ± 3W / cm2

*Patient Safety:

• While the instrument is 'ON', if intensity is not at minimum level (LED glow with beep sound) the patient safety circuit will not allow to set the time and hence no output.
