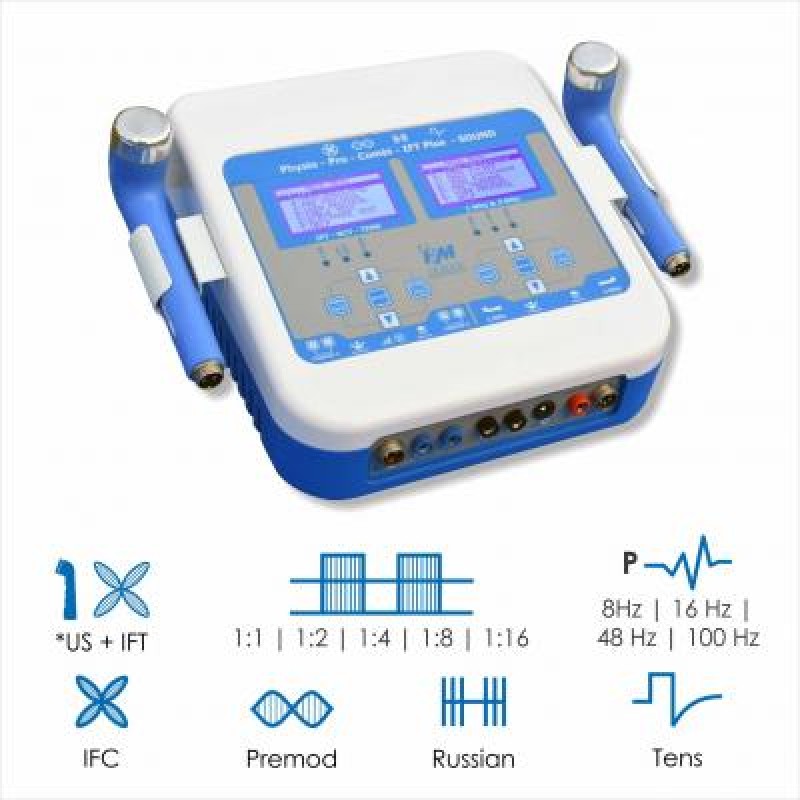

ProMed Combination

Product Details :

• Therapeutic U.S. involves these of high frequency acoustic energy to produce thermal & non-thermal effects in tissue. The effectiveness of U.S. in a variety of musculoskeletal conditions includes Periarticular inflammatory conditions such as (Bursitis, capsulitis, epicondylitis, tendinitis etc.) other chronic inflammatory conditions (Rheumatoid Arthritis, Ankylosing Spondylitis, Non-specific musculoskeletal pain, Low Back Ache, Frozen shoulder, Osteo-arthritis) etc.
• US+IFT Combination therapy involves simultaneous application of ultrasound with interferential therapy ensuring accurate localisation of treatment to increased accuracy / effectiveness in treating deeper lesions, treating trigger points.


Specification

• Mains Power - 110V – 270V AC, 47 to 63 Hz
• Weight - 2 kg
• Dimension - L 25 × B 25 × H 12 cm
• Electrical Safety Class - Class 1, type B
• Standard Accessories
• 11181 Four Rubber Electrodes (2.5” × 2” Large)
• 11182 Four Rubber Electrodes (2” × 2” Small)
• 11183 One Stim Wire (Blue Blue + Black Black)
• 11184 Two Large Velcro Straps
• 11185 Two Small Velcro Straps
• 11186 One Patient Interrupt Switch
• 11188 One 5 Amp AC Power Cord
• 11189 One Gel Bottle 250gm

Application

• Interferential Therapy
• Carrier Frequency - 2, 4, 6, 8, 10 Khz
• Base - 30 Hz (1 - 500 Hz)
• Sweep - 100 Hz (1 - 500 Hz)
• Sweep Program - Linear / Trapezoidal / Non-Linear
• Sweep Time - 4 - 8 - 12 Second
• Output Current - 0 - 100 mA
• Save Setting - Yes / No
• Intensity Selection - Both Channel Selection at a time after START for IFT
• Intensity Balance Selection - One at a time by using SELECT Key
• Intensity Control for 2P Premodulator / Russian Current One at a time by using SELECT Key
• Russian Current
• Burst Frequency - 50Hz (10-100Hz)
• Burst ON/Off Time - 5 Sec (1-60 Sec)
• Save Setting - Yes / No
• TENS - Continuous - Modulated
• Carrier Frequency - 2, 4, 6, 8, 10 Khz
• Base Frequency - 30 Hz (1 - 500 Hz in step of 1 Hz)
• Save Settings - Yes - No
• Auto TENS - SWEEP - Modulated (Linear / Trapezoidal / Non Linear)
• Carrier Frequency - 2, 4, 6, 8, 10 Khz
• Base Frequency - 30Hz (1 - 500 Hz in step of 1 Hz)
• Sweep Frequency - 100 Hz (1 - 500 Hz in step of 1 Hz)
• Sweep Time - 4 - 8 - 12 Second
• Save Settings - Yes - No
