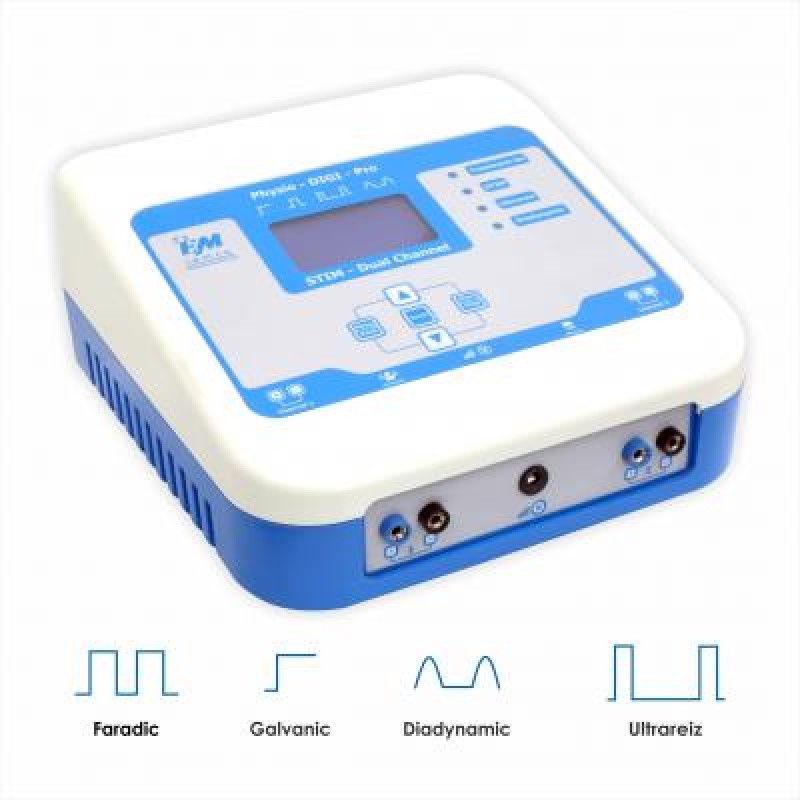

Pro Stim LCD (Dual Channel Stimulator)

Product Details :

• 20 Protocol
• 100 Memory
• Plain Galvanic
• Int Therapeutic Galvanic
• Int Diagnostic Galvanic
• Plain Faradic
• Surge Faradic
• Iontophoresis
• Ultrareiz Current
• Diadynamic
• Cable Test Facility
• Electrode Test Facility
• Patient Interrupt Switch

Specification

Plain Galvanic

• Direct DC Current
• Save Settings Yes - No

Int Galvanic Therapeutic

• Pulse Width - 100 mS (30 - 300 mS in step of 10 mS)
• Off Time - 1 Sec - (0.5 - 6 Secs in step of 0.5 Sec.)
• Save Settings Yes - No

Plain Faradic

• Frequency - 50 Hz (Fixed)
• Pulse Width - 0.7 mS (Fixed)
• Save Settings Yes - No

Surge Faradic

• Frequency - 50 Hz (Fixed)
• Pulse Width - 0.7 mS (Fixed)
• Surge On/Off Time - 5 Sec
• 1 - 10  Secs in step of 1 Second
• Surge Ramp Time - 0.5 Sec
• Save Settings Yes - No

Int Galvanic Diagnostic & Therapeutic

• Pulse Frequency - 1Hz
• Pulse Width - 300 mS.
• (.01, .03, .1, .3, 1, 3, 10, 30, 100, 300, 1000 mS.)
• Off Time - 1 Sec. (0.5 - 6 Secs. in step of 0.5 Sec.)
• Save Settings Yes - No

Special Feature -

• During the treatment time also, provision provided to select the pulse width  by using SELECT key and thereby enable to vary the pulse width using “UP” & “DN” Keys.

Iontophoresis

• Direct DC Current
• Save Settings Yes - No

Ultrareiz Current

• Frequency - 143 Hz. (Fixed)
• Pulse Width On Time - 2 mS. (Fixed)
• Pulse Width Off Time - 5 mS. (Fixed)
• Save Settings Yes - No

Diadynamic

• MF (50 Hz Halfwave)
• DF (100 Hz Fullwave)
• CP (Alter. of 50 Hz - 100 Hz)
• LP (Auto. linear of 50 Hz - 100 Hz)
• Save Settings Yes - No
