Ultrasonic Thickness Gauge Meter

Product Details :

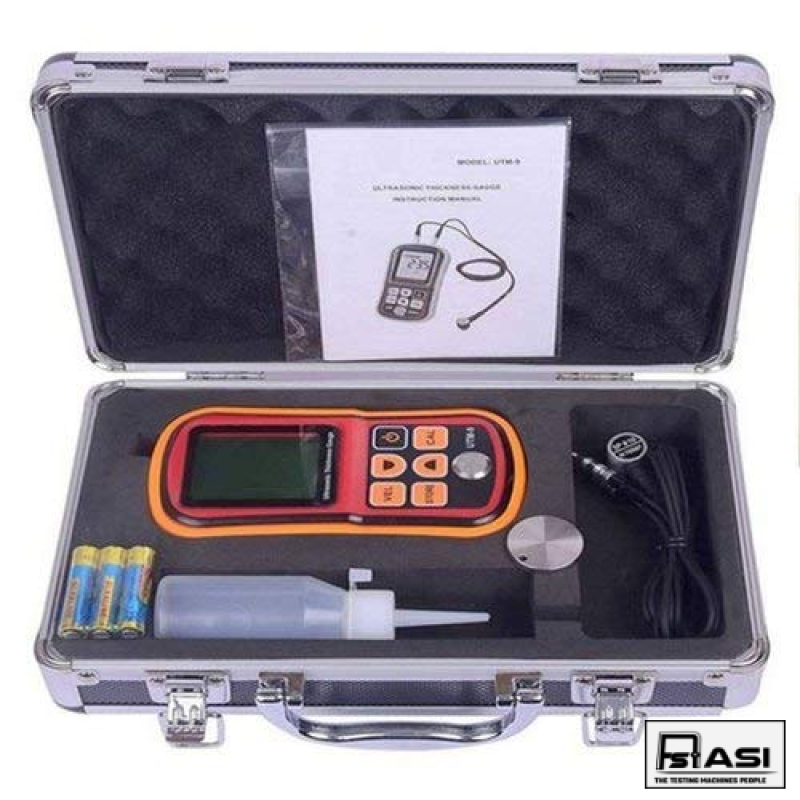

Ultrasonic Thickness Gauge Meter with Accessories

Metal Wall Thickness Range: 1.5 mm TO 100 mm (Minimum)

Microprocessor based ultrasonic thickness gauge with Memory/Logger of 1000 readings (minimum) and RS-232 port for PC connectivity. Facility for Direct print-out of stored thickness readings on regular PC printer is available, inclusive of following accessories with each instrument:

(a) Standard probe: Dual type for general purpose applications. (Frequency: 5 MHz., Contact face dia : 10mm)

(b) Probe Cable (double, co-axial, 1.5 Meter Length, with LEMO Plugs)

(c) Carrying/storage case (special, foam fitted wooden case)

(d) Protective Instrument Cover

(e) Rechargeable Ni-cad batteries (Qty: 2 sets)

(f) Battery Charger for above battery

(g) Data transfer cable from machine to printer OR PC

(h) Interface Computer software (On CD-ROM/Disc)

(i) Operation Manual

(j) "Test and Calibration Certificate" with traceability to NPL/NABL

(K) Step wedge with five step metric 2.5, 5.0, 7.5, 10.00 and 12.5mm of MS
