Digital Ultrasonic Flow Detector

Product Details :

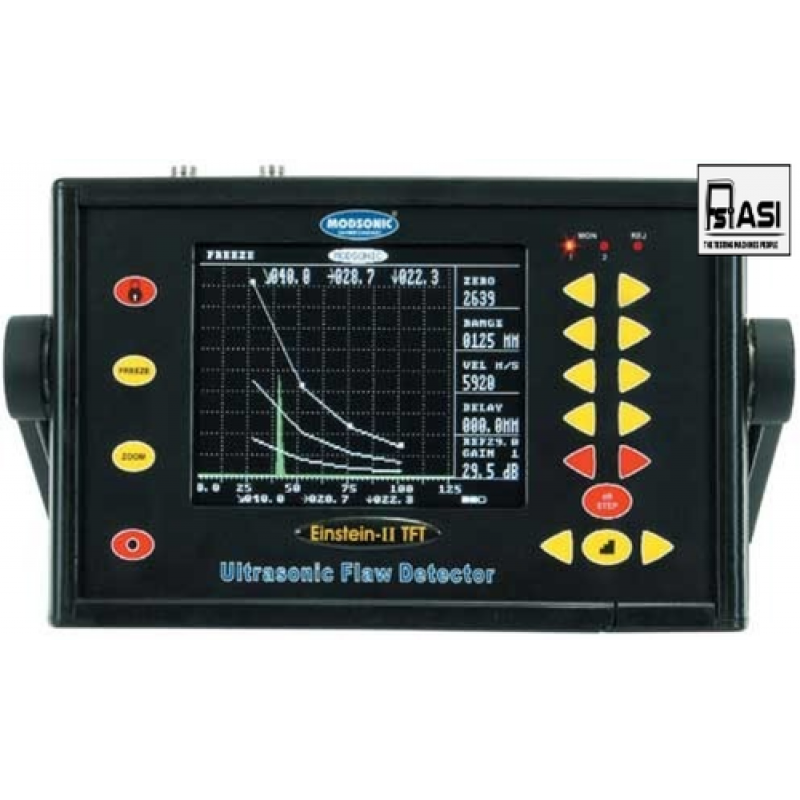

Digital Ultrasonic Flow Detector

Digital ultrasonic flow detector specifications:

Digital Ultrasonic Flow detector Einstein- DGS, with color display for excellent visibility, Auto DAC plotting, Digital thickness/ distance measurements, trigonometric measurements of depth and surface distance in weld inspection, Memory of 200 A- Scan images and 50 set-up data, RS 232 for PC connectivity with transfer software with features like

(a) '' Video Signal'' Output for connection to a TV and recording device

(b) Peak Freeze to detect maximum Echo height (Echo dynamic)

(c) Smooth parabolic DAC curves

(d) Note/ Label can be attached with each of A- Scan data

(e) Option of FLANK and PEAK trigger

(f) Selection of metric or British Unit

(g) Built- in DGS/ AVG curves for time proven flaw size evaluation

(h) TCG (Time Controlled Gain) which compensates for amplitude decay with distance.

(i) Dynamic DAC curves which allow change of test range and gain after plotting them

(j) Built- in software for defect evaluation as per AWS standard

Standard Accessories:

(a) ABT-1: 14.4 Volts/4AH Li-lon rechargeable  battery pack (Qty: 1 No)

(b) ATC-1: Battery Charger cum mains power pack with charge. Status Indicator & Power cord (Qty: 1)

(c) ETK: Special Leatherite Protective Case With Should Sling and Waist- Strap.

(d) EL-372: Plastic moulded foam fitted carrying case for storage and transportation of complete kit (Qty:

1 No)

(e) EinSoft- DGS: transfer software on CD - ROM

(f) Eincord-1: Data cord to interface Einstein-II with PC

(g) Eincord-3: Data cord to connect Einstein-II DGS with TV

(h) EIM-1: Illustrated instruction (Operation) Manual in English (Qty: 1 No)

(i) Calibration certificate as per ASTM- E317-11 traceable to NPL- Delhi

1: V-1 Reference Block, IIW type, including wooden box with handle

2. Miniature Block including wooden box.

3. VW: Step Block, 10 steps from  1 mm to 10 mm , Materials: MS, including wooden box

4. M2SN: Normal Probe, 24mm dia 2 MHz, ''0'' Deg.angle with BNC Connector

5. M 4 SN: Normal probe, 24 mm dia 4MHz. ''O'' Deg. angle with BNC Connector

6. MBW45 N2:  Miniature Angle probe, 9x8 mm, 45 Deg. 2MHz. with Mini Lemo Connector.

7. MBW 60 N2:  Miniature Angle probe, 9x8 mm, 60 Deg. 2MHz. with Mini Lemo Connector.

8. MBW 70 N2:  Miniature Angle probe, 9x8 mm, 70 Deg. 2MHz. with Mini Lemo Connector

9. MBW 45 N4:  Miniature Angle probe, 9x8 mm, 45 Deg. 4MHz. with Mini Lemo Connector

10. MBW 60 N4:  Miniature Angle probe, 9x8 mm, 60 Deg. 4MHz. with Mini Lemo Connector

11. MBW 70 N4:  Miniature Angle probe, 9x8 mm, 70 Deg. 4MHz. with Mini Lemo Connector

12. MMEB 4H:  Miniature Dual Crystal  probe, 10 mm Dia 4MHz. , 06 Deg. roof angle with Mini Lemo Connectors.

13. PKBB-2: Probe cable BNC to BNC, 2 Mtrs. long

14. MPKBL-2 (Dual: Dual, BNC to Mini Lemo, 2 Mtrs. long

15. MPKBL-2: Probe cable, BNC to Mii Lemo,  2 Mtrs.
