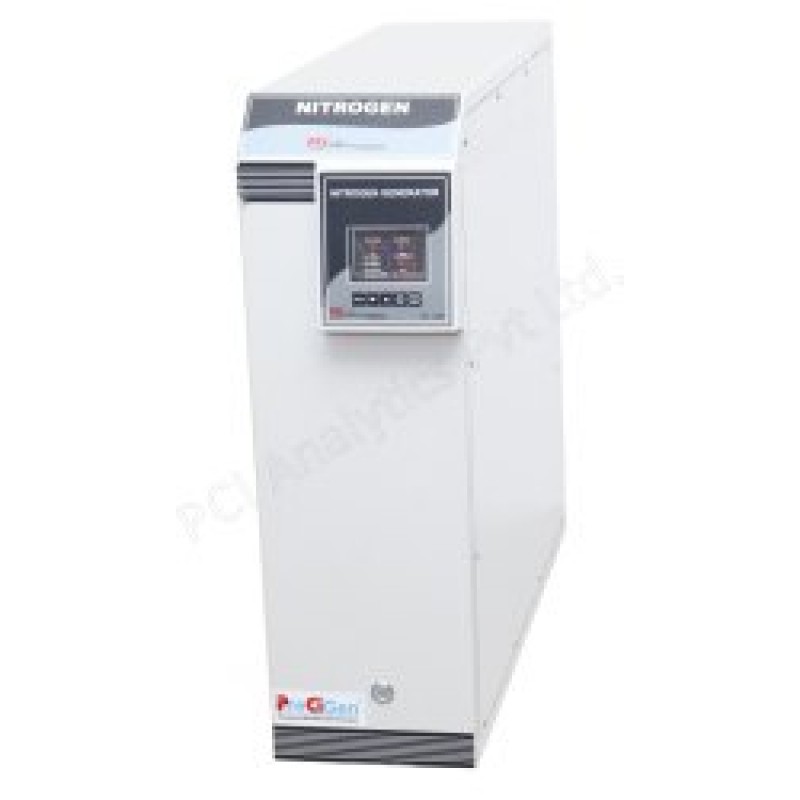

Nitrogen Gas Generator (S-Series) for CAD

Product Details :

• The nitrogen Generator produces a continuous flow of high purity Nitrogen at the selected pressure.
• The modular pressure swing adsorption (PSA) unit operates with alternating pressure increase and decrease.
• Untreated air flows under pressure through the reaction towers containing carbon molecular sieves adsorber. Moisture, CO, CO2, THC, O2 and other unwanted components in the air are adsorbed, leaving Nitrogen Gas of required purity.
• During the desorption cycle,the trapped substances adsorbed are released again at low pressure and the adsorber is ready for next cycle.

Features & Benefits:

• No external compressor required.
• Inbuilt Silent oil free air compressor.
• Automatic heatless air dryer timer based operation.
• Capable to run upto 5-6 GC.
• Pressure swing Adsorption (PSA) Technology.
• Microcontroller based Nitrogen Generator with 2 Chanel analog sensors for pressure and with four relay output.
• Designed as plug & play system.
• TFT color display (3.5") 320 x 240 color pixel graphical display.
• Gas on demand, no health hazards, no need to worry about running out of gas.
• Digital pressure display.
