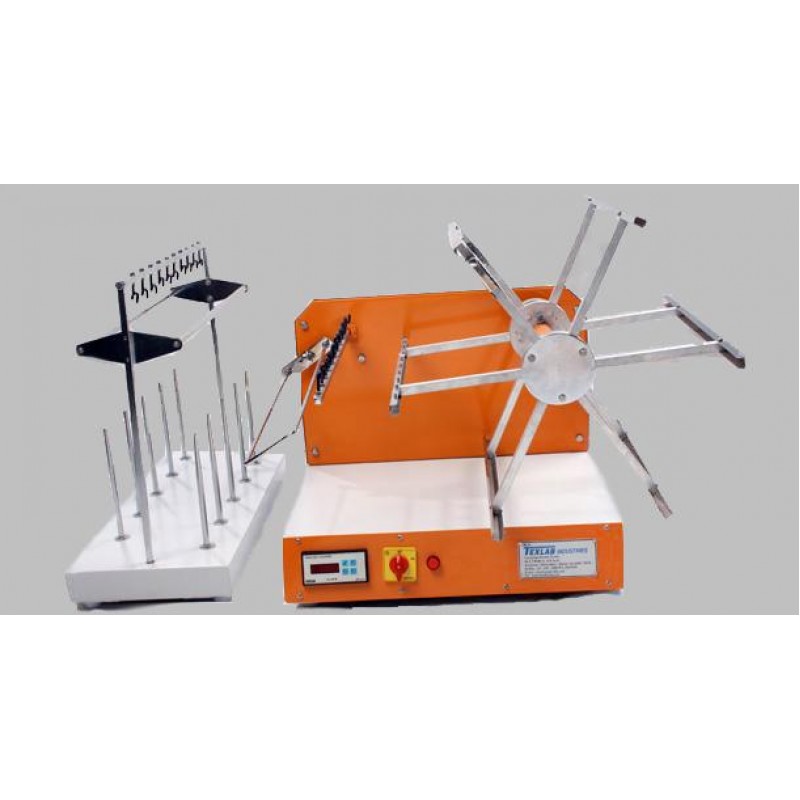

Motorised Wrap Reel with Digital Counter

Product Details :

IS0-2060/3801,ASTM D 1578/1907/2260/2646/3776

BS 2010/2471/6372 IS 1315 1WSTM 13 IWTO 22-83 DIN 53830

• Make 10 Leas at a time – Motor Operated.
• With Electronic Pre-settable Counter equipped with PNP Proximity switch.
• Whole Machine constructed from best quality Mild steel & duly Metallic color painted.
• Reel having diameter of 1 Meter 90 meters (Denier) or
• 1.5 yards in case of British System for Cotton 80 revolation.
• Also equipped with Tensioning Device & Bobbin Holders.
• Final Speed of reel with 75 RPM
• Equipped with 1/8th H.P. Single Phase Geared Motor.
• Electric supply:5 Amps. Single Phase 230V AC
