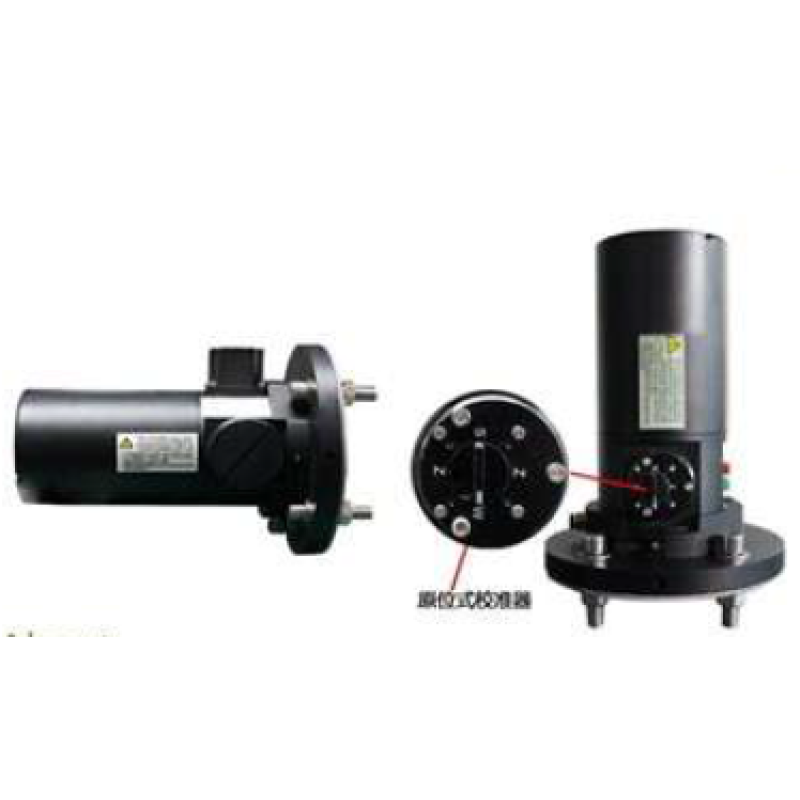

Online SPM
Product Details :
The EE-SPM100 soot/dust concentration monitor uses the laser backscattering principle to determine the soot concentration of the flue to be tested. The embedded high-stability laser signal source traverses the flue and irradiates the soot particles The irradiated soot particles will reflect the laser signal, and the reflected signal intensity and the soot concentration will change positively. The weak laser signal reflected by the smoke is detected, and the concentration of the flue dust can be calculated by a specific algorithm.
Features:
- Compact sensor based system with low maintenance.
- IOT/Cloud Connectivity.
- extremely low zero drift design technology
- Optional RS-485 out for SCADA
Specifications :
TYPE | Details |
| Model | EE-SPM100 |
| Technology | laser backscattering principle |
| Range | 0-1000mg/m3 (range can be customized) |
| Range drift: | +/- 2%F.S./24 |
| Response time: | <= 10s |
| Application | Stack / flue gas |
Online SPM
- Views: 189
-
ENGINEERING AND ENVIRONMENTAL SOLUTIONS PVT LTD - Vendor Type: Manufacturer, Supplier
- Product Code: EE-SPM100
- Availability: In Stock
