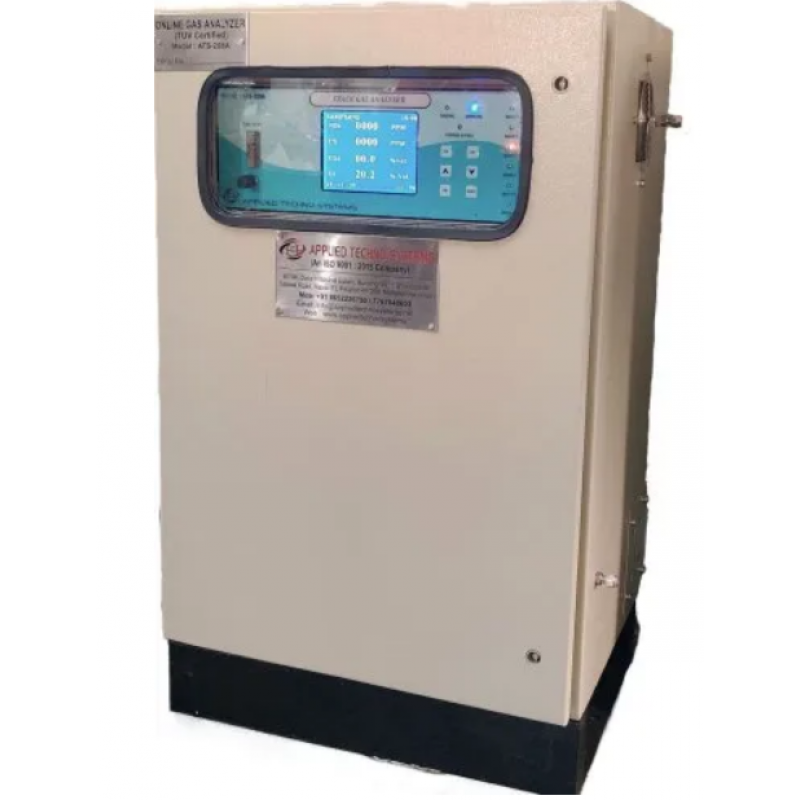

Continuous Emission Monitoring System

Product Details:

Finish	Matt
Brand	Applied Techno Systems
Color	Off White
Model	ATS-28A
Accuracy	+/-2 %
Analog Output	4-20 mA
Display Type	Digital
Voltage	230 VDC
Country of Origin	Made in India

Applied Techno Systems : The Pioneers Of Air Pollution & Stack Emission Monitoring systems In India (TUV Approved)The Applied Model ATS 208A Continuous Emission Monitoring System is designed to meet the needs of organizations requiring cost effective and reliable multiple gas analyzer solutions. The technology employed are all tried and tested to ensure the user experiences maximum reliability and accuracy.

• Microcontroller based embedded intelligent instruments

• Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, NOX (NO+NO2), H2, H2S, N2

• Duel wavelength Infra red sensor for Long terms accuracy and stability

• Long Life Electrochemical sensor

• Six Gas Analysis in Single Analyser

• Multi Parameter Single 320 X 240 Graphics LCD Display

• Self diagnostic & Self integrity check

• RS 232/RS 485 and USB Computer Interface

• Excellent low level capability for NOX and SO2 Measurement

• For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.

• Analog 4-20mA output for each gas

• Software solutions for Gas Analysis

• Web Based Real time data transfer with GSM/GPRS Technology.
