Description Of Clean Room Temperature & RH Monitors:

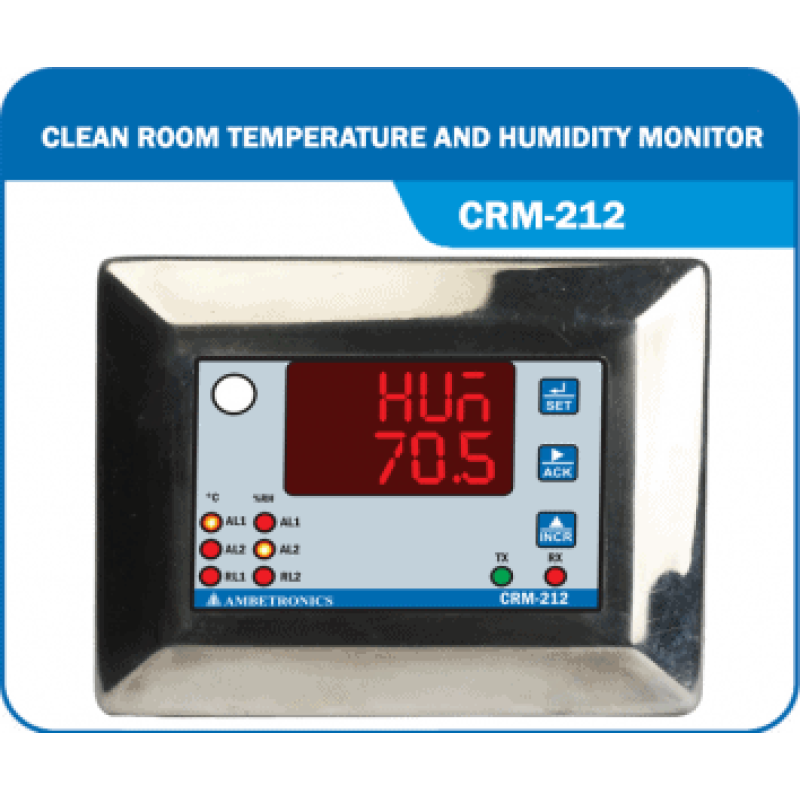

The Clean Room Temperature & humidity Monitor CRM-212 is the latest upgraded, flush mounted monitoring equipment designed for continuous TRH monitoring at research labs, cold storage warehouses in industries like Pharma manufacturing & packaging, Animal Housing, Hospitals & Meteorological industries.

Salient Features Of Clean Room Temperature & RH Monitors:

• LED display Indication for Temperature, Humidity.
• Remote Temperature and RH sensor Connection facility.
• Independent Programmable Alarm for Temperature, Humidity user programmable.
• In built Buzzer for Alarm set points with Acknowledgment facility.
• Software calibration facility.
• Password protected programming.
• Isolated RS-485 communication with Modbus RTU Protocol.

Technical Specifications Of Clean Room Temperature & RH Monitors:

• Sensors : Integrated / Remote Humidity and Temperature Sensor.
• Temperature Range: -40.0 °C to 100 °C, User programmable; 0.1 Resolution
• Humidity : 0% to 100 % RH, User programmable; 0.1 Resolution
• Output Relay : 2 No, 2A/24VDC for Temperature/RH; User programmable
• Display Indication : 4 digit Seven Segment 0.4” Red LED display for Temp./ RH indication
• Status indication : 2 LEDs for Alarms; Integrated Buzzer for process violation of Alarm limits any of the 2 parameters.
• Communication : Isolated RS-485 communication with Modbus RTU Protocol
• Programmable parameter : 9600 bps, Parity, Data bits, Stop bits
• No. of salve ID : 1-250
• Accuracy- Temperature : ± 0.5% of FS
• Accuracy- Humidity : ± 3 % of FS
• Programmable Parameters:-

                o Set point : Programmable as per input selection

                o Programming of parameters : 3 Nos. push button front keys (with password protection)

                o Alarm logic : High or Low, user programmable

• Operating Ambient Temp. : 0 to 50°C
• Humidity : Below 90% RH, Non condensing.
• Supply voltage : 24VDC ± 10%
• Power consumption : Less than 1.2 watt at 24VDC
• Dimensions; Flush mounting plate : SS-304
• Front plate size : 110 mm (W) x 90 mm (H)
• Back enclosure : 76 mm (W) x76 mm (H) x45 mm (D); MS with powder coated
• Mounting : Modular wall mounting with Stainless Steel Front

Applications Of Clean Room Temperature & RH Monitors:

• Clean room application in Pharmaceutical
• Pharma Environments monitoring applications.
• HVAC (Heating, ventilation, Air conditioning, Cooling).
• Animal house clean room
