Clean Room Combustible Monitor

Download

Description Of Clean Room Combustible Monitors:

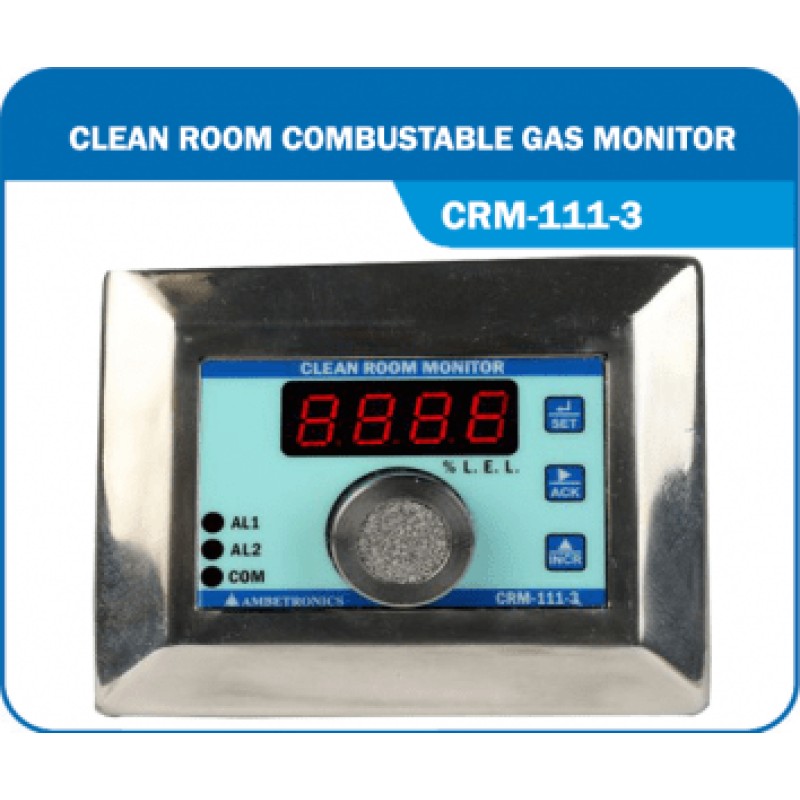

The Clean Room Combustible Monitor – CRM-111-3 is the latest upgraded, flush mounted monitoring equipment specifically for continuous monitoring of combustible gas concentrations at research labs, cold storage warehouses in industries like Pharma manufacturing & packaging, Animal Housing, Hospitals & Meteorological industries.

Salient Features Of Clean Room Combustible Monitors:

• LED display Indication for Combustible Gas Concentration indication.
• User Programmable Alarm.
• In built Buzzer for Alarm set points with Acknowledgment facility.
• Software calibration facility.
• Password protected programming.
• Isolated RS-485 communication with Modbus RTU Protocol.

Technical Specifications Of Clean Room Combustible Monitors:

• Display : 4 digit Seven Segment 0.4” Red LED display for gas concentration indication
• Status indication : 2 LEDs for Alarms; Integrated Buzzer for process violation of Alarm limits
• Sensors : Catalytic / Pellistor type sensors
• Range: 0 to 100% LEL (Please check Product Catalogue for combustible gas type & details)
• Accuracy: ± 3% of FS
• Communication : Isolated RS-485 communication with Modbus RTU Protocol
• Set point : 2 Nos. AL1, AL2 User Programmable; Programming of parameters : 3 Nos. push button front keys (with password protection)
• Programmable parameter : 9600 bps, Parity, Data bits, Stop bits
• Alarm logic : High or Low, user programmable
• Operating Ambient Temp. : 0 to 50°C
• Humidity : Below 90% RH, Non condensing.
• Supply voltage : 24VDC ± 10%
• Power consumption : Less than 1.2 watt at 24VDC
• Flush mounting plate : SS-304
• Front plate size : 110 mm(W) x90 mm(H)
• Back enclosure : 76 mm (W) x70mm(H) x45mm(D); MS with powder coating.
• Mounting : Modular wall mounting with Stainless Steel Front

Applications Of Clean Room Combustible Monitors:

• Clean room application in Pharmaceutical
• Pharma Environments monitoring applications.
• HVAC (Heating, ventilation, Air conditioning, Cooling).
• Animal house clean room
