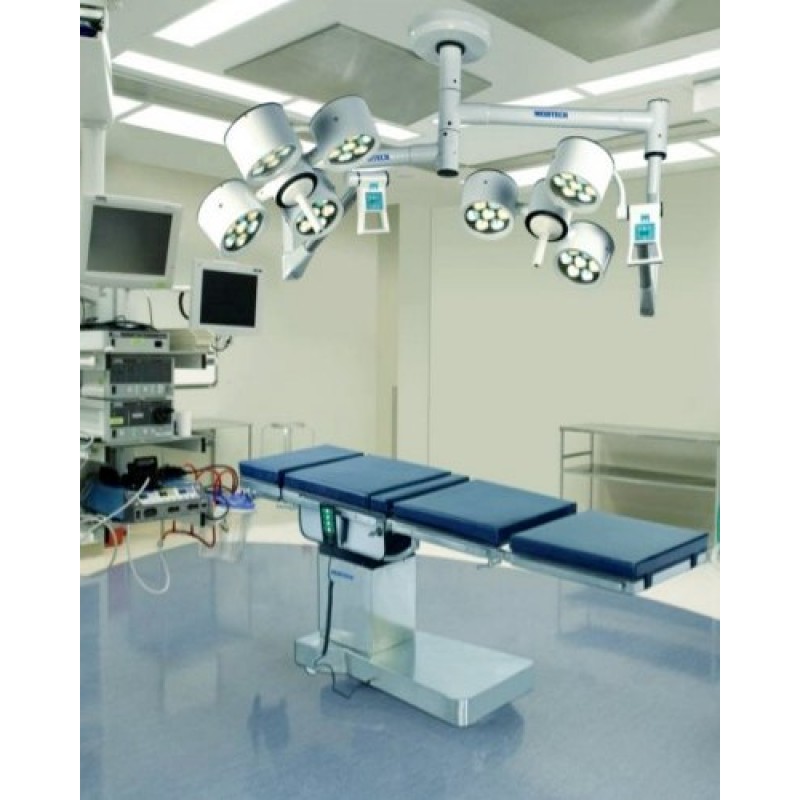

Modular Operation Theater

Sterility in Operation Theater is an absolute imperative for insuring that patients are protected from life-threatening infections.

Based on the experience, Madhav Trading Company is contributing to the improvement of Operation Theater and reducing the risk of infection by designing and commissioning the Modular Operation Theater.

The construction of Modular Operation Theater is done with readymade prefab panels with speedy construction and high quality finishes and flexible to future expansions & maintenance without interrupting other functioning departments.

We offer turnkey engineering solutions for Modular Operation Theater which includes site survey, design, supply, supervision, Installation, Testing & commissioning, Validation, Operation & Maintenance of the system.

SALIENT FEATURES OF MODULAR OPERATION THEATER

• The Laminar Air Flow System with HEPA having 99.97% efficiency against 0.3 micron particles creates an extremely homogeneous laminar flow. Any Bacteria, Viruses or dust particles are extracted directly before the air enters the area. Our range of OT Laminar Air Flow unit are made of SS-304, Aluminum Powder Coated & CRCA Powder coated equipped with perforated grill to protect HEPA Filter.
• Puff insulated wall & Ceiling panel which are easy to maintain & clean.
• Cost effective models.
• Epoxy/Vinyl flooring.
• Hermetically Sealed Doors.
• Positive pressure in Modular Operation Theater ensures no entry for outside contaminated air. Positive pressure is maintained between 2.5 to 20 Pascal as per NABH.
• ISO Class-5/ Class-100 in Modular Operation Theater at Grill level as per NABH Guidelines.
• Temperature is maintained between 21 ± 3 ??C & relative humidity between 20 to 60 % as per NABH.
• More than 20 Air Change per Hour is maintained in Modular  Operation Theater. Air is supplied through AHU and ducting is done with non-corrosive material.
• The AHU (i.e Air Handling Unit) used to supply air in Modular Operation Theater is an air purification unit & air filtration unit. It contains two sets of washable flange type filters of efficiency 90% down to 10 micron & 99% down to 5 microns with aluminum/SS-304 frame within the AHU. Service panels are provided for servicing filter, motor & blower.
• Following NABH guidelines for validation of Modular Operation Theater.
