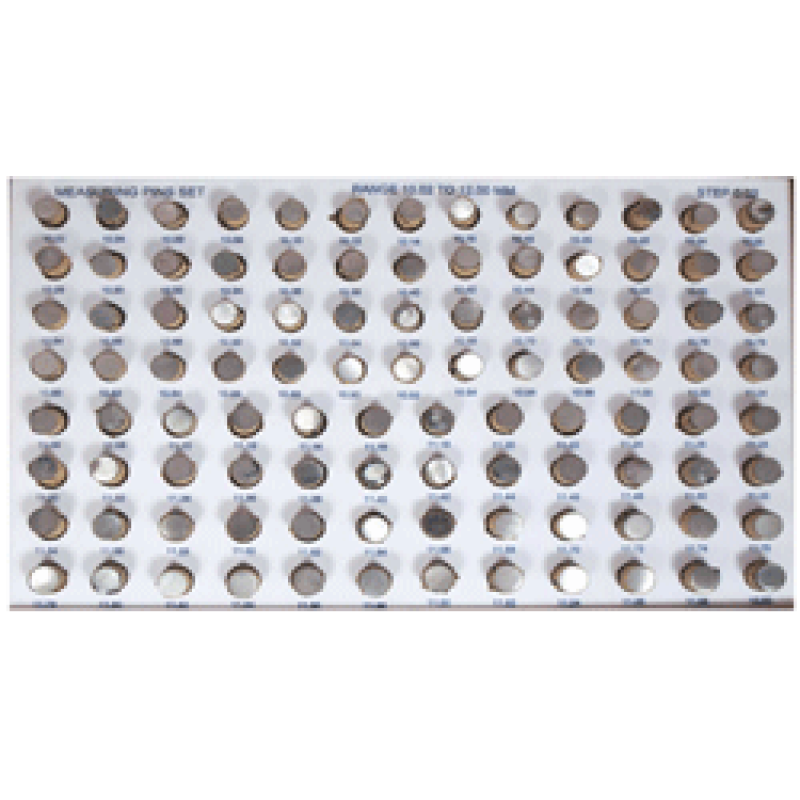

Measuring Pins

Product Details :

Measuring Pins for checking bores, centre distance, groove dimensions, inspection of micrometers, gear measurements

Measuring pins are manufactured from high quality ste lapped to meet international standards.

Note : For steel measuring Pins

a) Mfg. Tol.: + 0.002 mm

b) All Pins are without knob ( Knobs on request only )

c) Hardness 58 to 62 HRC ( Steel )

d) Length for range 0.5 ~ 1.5mm , Will be 40mm

e) Length for range 1.51 ~ 12mm , will be 50mm.

f) Each pin is cased in plastic tube further placed in wooden polished box.

g) Supplied with calibration report.
