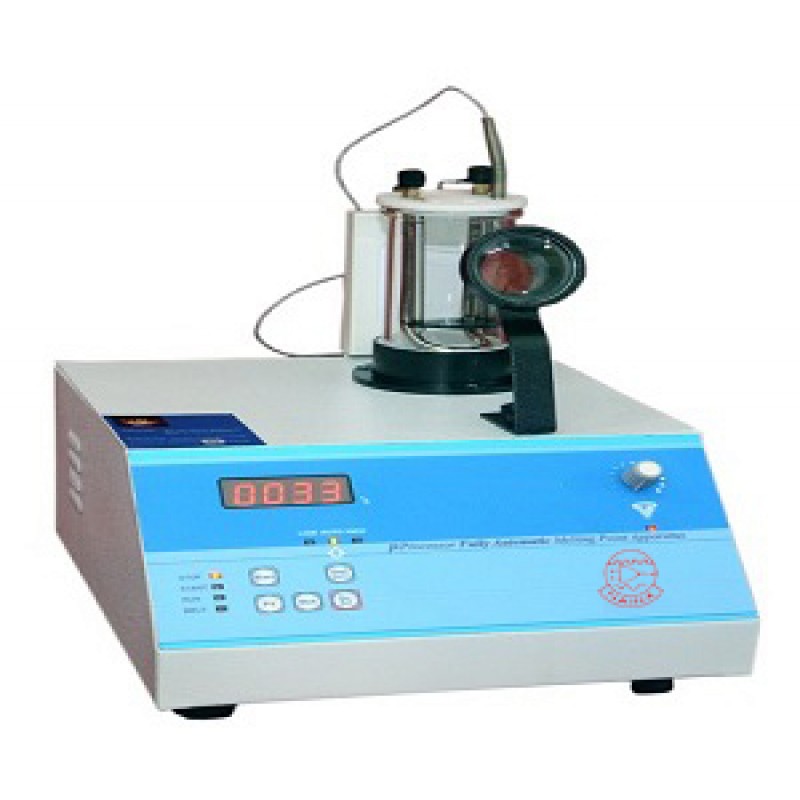

MICROPROCESSOR MELTING POINT APPARATUS NS972

Product Details :

Sample The unit consists of a built in magnetic stirrer, glare free background illuminator and cylindrical silicon oil bath. The silicon oil bath consists of a plain cylindrical container of corning glass having capacity of about 200 ml. It is furnished with a Teflon cover fitted with special type of oil immersion heater, having three small holes for holding the capillaries, one big hole for thermometer and another big hole for boiling point tube / Temp. Sensors for calibration purposes. A variable speed stirrer is fitted in it. The apparatus can be used for determination of boiling points, Temp. Effect on viscosity /flow points and molecular weights by Rust’s method with suitable accessories.

Features:

Suitable for dark colored / any colored samples.

Parameter	Data
Digital Display	4 Digits LED
Temperature Range	10°C to 300°C
Resolution	1°C(0.1°C Optional)
Temperature Sensor	Grade "A" PT-100, Platinum sensor
Sample Capacity	3 Samples & 18 mm Provision for test tube for detemination of boiling point of any liquid.
Application Area	Silicon oil bath
Application	suitable for boiling & melting point
Heating Controll	Microprocessor controlled closed loop PID
Ramp Rate	2°C to 10°C per miniute(Selectable Auto-Low-High)
Melting View	Magnifying display of melting operation with the help of adjustable magnifying glass, melting point hold on by activating "Hold" key & reading is protected from power failure till "RESET" is not activated.
Power Supply	230V ± 10% AC, 50 Hz.
Dimension (L x B x H)	270 x 330 x 145 mm
Accessories	Temp. Probe-01 No. Silicon Oil-01, Lens-01, Heater-01, Megnetic Stirrer Capsule-01, Titration bottle-01, Melting Point Capillaries-100 pcs. Boiling Test Tube-03 pcs.
