Lyophilizer ( Freeze Dryer)

Product Details :

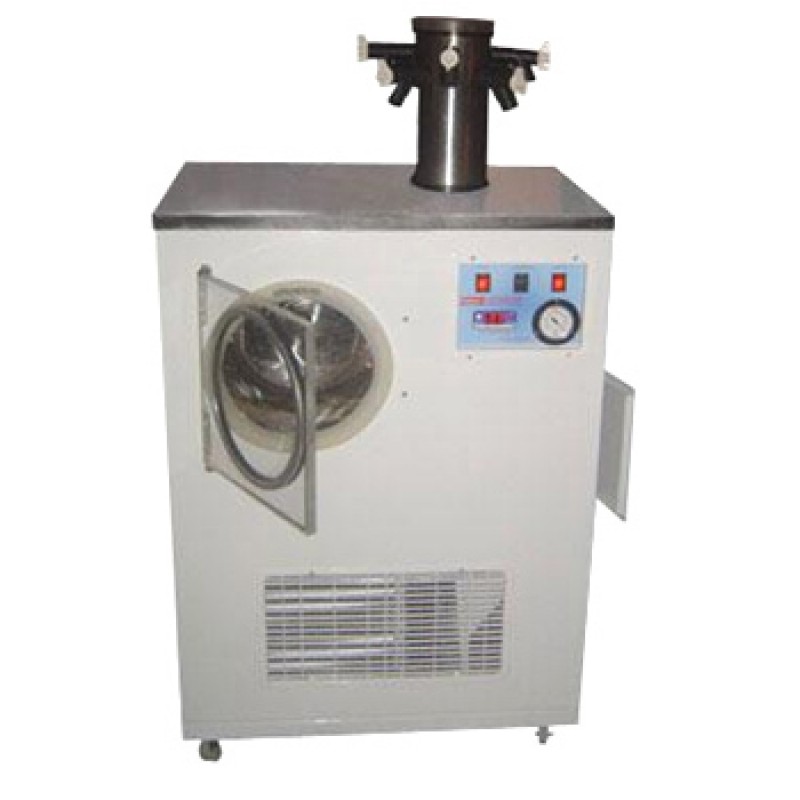

We are one of the leading supplier of lyophilizer which is housed in a super structure steel frame and is mounted on swivel casters. These are equipped with perspex transparent lid and electronic vacuum indicator. Besides, also have gasket and control instruments consisting of microprocessor based digital temperature controller for measuring temperature.

specifications Include:

• made of hermatically sealed compressor the unit has a direct motor which can drive 100 liters/ min. This motor of rotary vane type has a vacuum pump of double stage with air blast having less than 50 microns vacuum in the system and up to 10 microns on the pump head
• condenser trap: the non-magnetic stainless steel is fabricated, argon welded and are dished at the bottom for complete removal of effluents
• refrigeration coils are copper bonded to outside of condenser which is heavily insulated
• at ambient temperature of 2ff c, temperature up to (-)40"c is controlled through a microprocessor based digital temperature indicator
• the vacuum drum is made of stainless steel of non-magnetic grade and has 6 or 12 port manifold with a perspex top cover
• capacity : 3. 25 liters approximately (for 6 tests) 234000
• capacity : 5. 25 liters approximately (for 12 tests) 265000

optional accessories:

• secondary drying unit 66000
• pre-freezing attachment 58000
• heat rack with 2/3 individually heated racks for accelerated freeze drying of small samples in bulk (tray, petri dishes, beakers etc. Adoptable to main drying chamber) 28000
