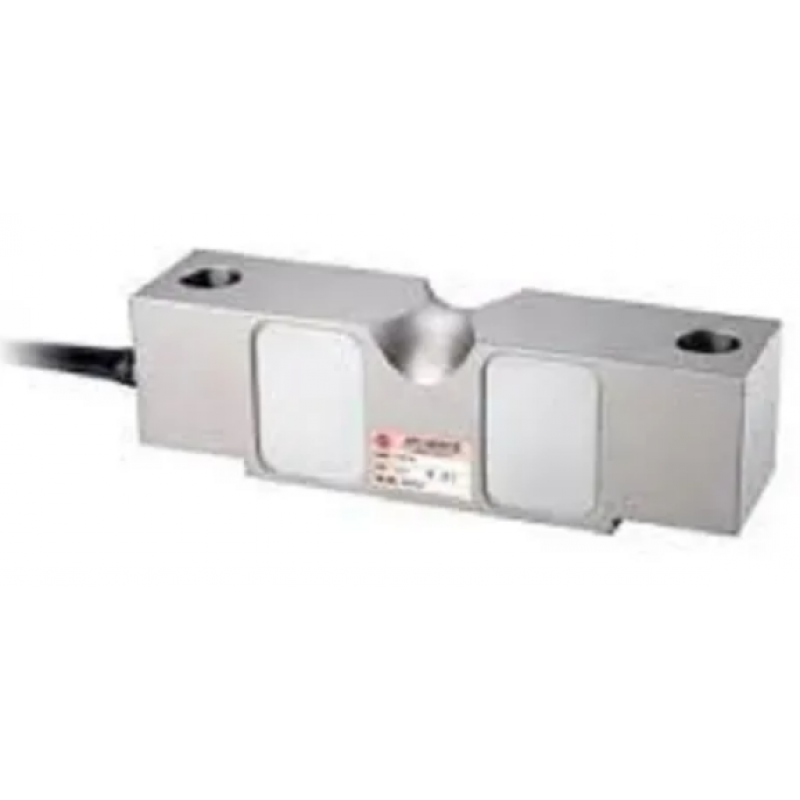

Double Ended Beam Load Cells
Product Details:
| Type | Double Ended Shear Beam |
| Capacity | 10-100 Ton |
| Output Sensitivity(FS) | 3.0 +/- 0.003 mV/V |
| Creep Error (30 minutes) | +/- 0.03% FS |
| Temperature Effect on Zero | +/-0.002% FS/DegC |
| Temperature Effect on Output | +/-0.0015% FS/DegC |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Recommended Excitation Voltage | 5 to 15V DC |
| Insulation resistance at 50V DC | >= 1000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperatue Range | -20 to +70 Deg C |
We are leading manufacturer and supplier of Double ended Beam load cell
It is manufactured using quality raw materials and latest technology, fulfilling industrial weighing needs. Furthermore, these products are checked on various quality parameters to ensure its defect-free nature.
Double Ended Beam Load Cells
- Views: 113
- Vendor: Precision Electronic Instruments Co.
- Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: PEI-000013
- Availability: In Stock
