Klystron Power Supply

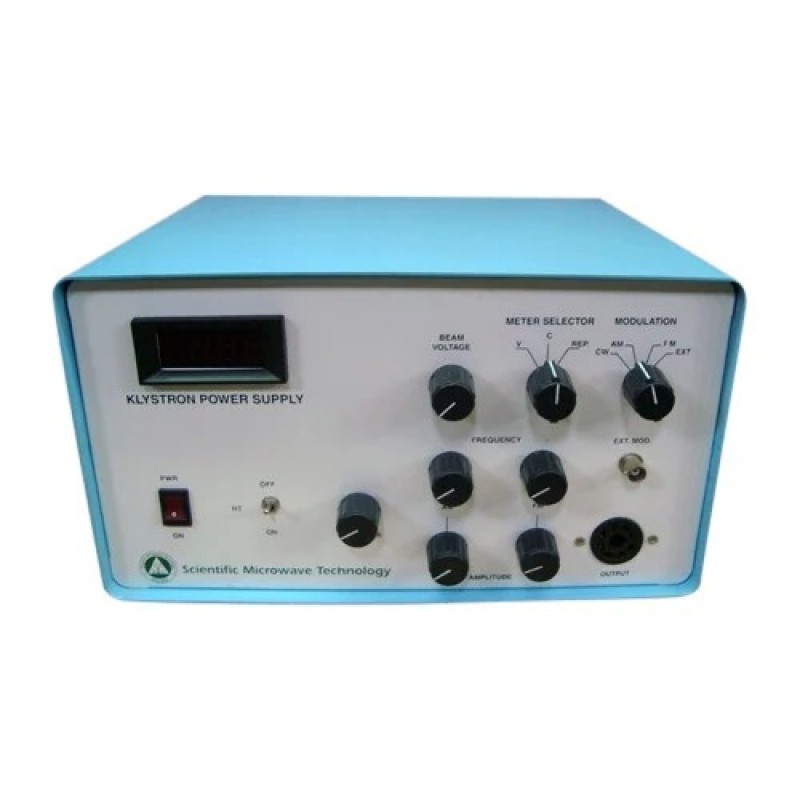

Klystron Power Supply generates required beam and repeller voltage for the X-Band klystron tube like 2K25. It is very stable and contains the short circuit protection circuit. Also, it has amplitude and frequency modulation circuits for the generation of 1 KHz square wave and the sawtooth wave.

Specifications:

Model: KPS-611

Beam Supply

• Voltage Range: 200-415 V Continuously Variable
• Regulation: Better than0.5% for 10% variation in the mains supply voltage.
• Ripple: Less than 5mV RMS
• Repler Supply Voltage Range cathode: 5V to 25W DC Continuously variable with respect to klystron
• Regulation: 0.25% for 10% variation in the mains supply voltage.
• Heater Supply: 6.3 V DC(Regulated)

Modulation:

• Square Wave: Max. Amplitude: + 110 V peak to peak Freq.: 400 Hz-2500Hz Amplitude and frequency continuously variable
• Operating Voltage: 230V± 10%. 50 Hz. A.C.
