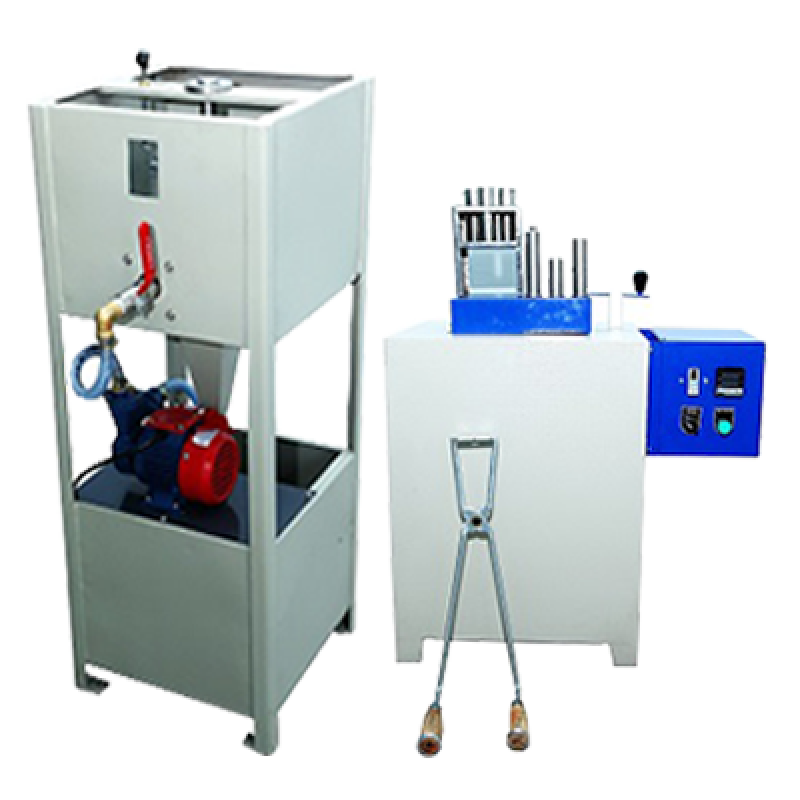

Jominy End Quench Test Set-Up

Product Details :

Model: CJT-I

Quick Overview :

• Designed as per various IS, ASTM standards to study Jominy End Quench Test consisting of specially designed vertical muffle furnace, Jominy Quenching fixture and allied accessories
• Jominy Quenching fixture - Structure designed as per standards referred above having in-built water reservoir with motorized recirculation system and water flow controlling valve.
• Vertical Muffle - Max Temp – 1200 Deg C, Continuous Operating Temp – 1050 Deg C, Electrical Rating – 3 kW, 220V Single Phase, Heating Chamber – 150X150X300mmControl Panel – PID temp controller, ON-OFF switch
• Standard Accessories - S. S. Fixture for Jominy Moulds, S. S. Jominy Moulds, Dummy specimen for water stream setting, Std Insert for water stream alignment, Special Tong
• Optional Accessories and consumables S. S. Fixture for Jominy Moulds, S. S. Jominy Moulds, Dummy specimen for water stream setting, Std Insert for water stream alignment, Special Tong, ceramic muffle with heating element, electrical components etc
• Whole test set up can be manufactured in Stainless Steel if desired.
