MATERIAL PLUS

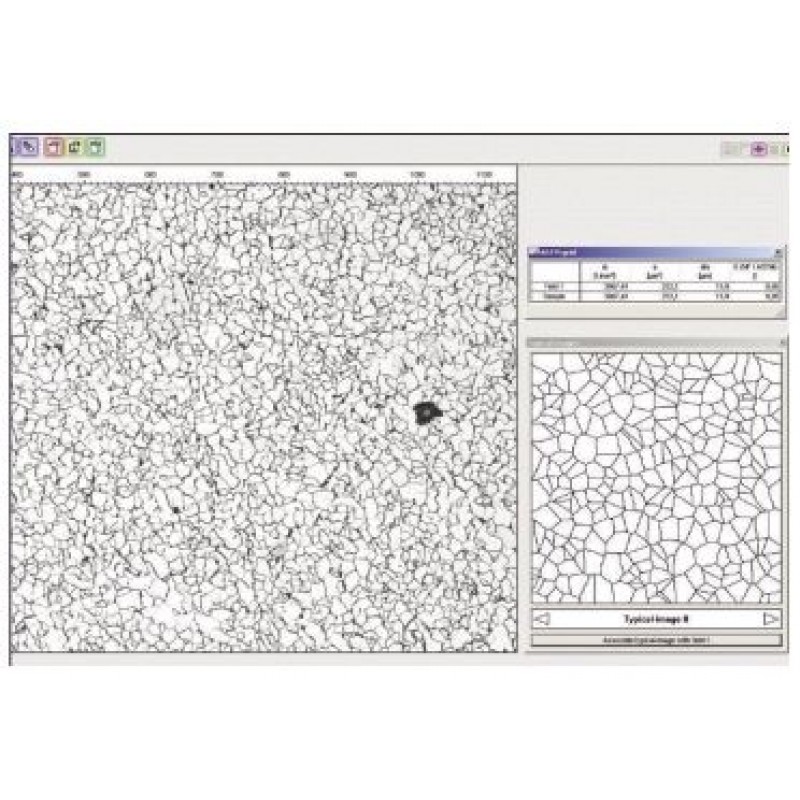

Application program are set in the simplest way without compromising accuracy so that inexperienced operator can also make analysis with a minimum of training. Our current portfolio of metallurgy solutions are Nodules analysis, Coating Thickness Measurement, Depth of Width Measurement of Decarburization, Phase percentage with display by colored overlays, Grain Size No., Porosity Analysis, Graphite Flakes Measurement, Non-Metallic Inclusion Rating, Particle Size and Volume Percentage with lot make software complete. Generated reports can be saved or printed with images, Histogram, Data Overlays colors and various other related information.

IMAGE EDITING

VIEW

• Cut, Copy, and Paste.
• Selected copy by free hand AOL controlled by four arrow keys
• available on keyboard or mouse with zoom preview.
• Crop, duplicate, restore
• Resize
• Compression
• Conversion to other format BMP, JPG, TIF, PNG, GIF & PSD
• Flood fill or spray with selected color at selected portion.
• Grid creation; 5X5, 10X10 & 100X100 grids (or cells).
• Drawing tool curve, line, square, and circle with node control and
• provision to change color & thickness of the line.
• Write text in any color or font.
• Pointer to place on an object in either of four directions with provision to change its color & thickness.
• Eraser works only on line, arrow or on any drawing tool.(not on original image)
• Camera Lucida
• Montage feature to merge stored image together. Useful to Merge
• different focuses of same image.
• Zoom in/out
• Zoomed preview
• Rotation at 90, 180,270 or custom
• Image flipping; horizontal or vertical axis
• Intensity histogram.
• Image Information
• Redo/Undo on all operations.

IMAGE PROCESSING

• Background subtraction and contrast enhancement of color or grayscale images
• Arithmatic image functions (Boolean Math; Add, AND, OR, XOR, DIFF, MIN, MAX, +, -, /, *, And Simple).

ROUTINE FILTERS

• Invert, Brightness, Contrast, Hue, Saturation, Blur, Noise Remove, Emboss, Engrave, Gamma R, Gamma G, Gamma B,
• Yellow, Magenta, Cyan, Mosaic, Smooth, Desaturation, Pseudo Color, Colorize, Oilify, Despeckle, Posterize.

SPECIAL FILTERS & KARNELS

• High Boost, High Spatial, Low Pass Spatial, Ranking (Max, Med, Min), Point detection, Line detection, Homogeneity
• EDGE DETECTION
• Laplacing, Sobel, Krisch, Prewitt Gradient, Shift & Difference, Combine, Contrast Base, Quick, Range And Variance.

MORPHOMETERY

• Skeleton zing, Pruning, SKIZ, Histogram Equalization, Histogram Smoothing, Histogram Peak, Histogram Valley, Segmentation by Over/Under and Quantized, Contorting, Dilation / Erosion on Binary, Gray & colored Images, Opening/ Closing on Gray & Binary Images, Special Opening/Closing, Split/Combine of RGB, YUV, YIQ, XYZ, & HSL, Changing any Image to 1, 4, 8 & 24 bits, Medial Axis. Transformation, Halftone.

• Image Addition, Image Average, Image Subtraction, Image Multiplication.

MEASUREMENT

• Spatial calibration
• Line measurements for Distance, Length, Width, Perimeter, Angle, Three Point Radius.
• Area by enclosed line controlled by four arrow keys available on keyboard arrows with zoomed preview.
