Industrial PH/ORP Controllers

Product Details :

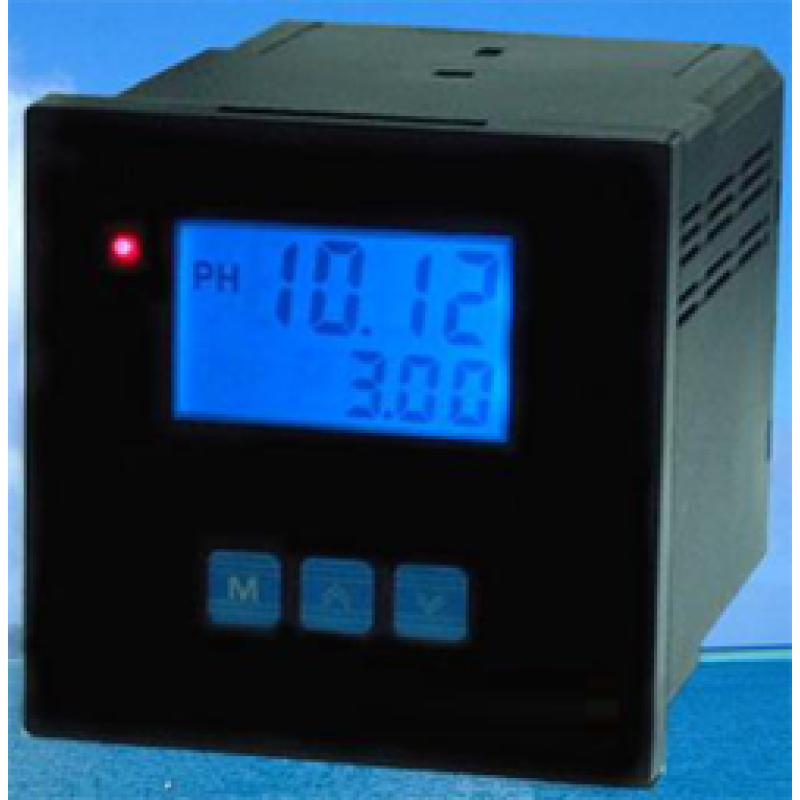

Industrial pH/ORP Controller

pH/ORP Controller is an accurate secondary instrument with LCD digital display. it is applicable to determine pH value solution. The instrument is suitable for online monitoring of pH/ORP in departments of petroleum, chemical, medicine-produce, water treatment, ETP, WWTP, Electroplating, Environmental monitoring, etc.. . It’s strong anti-interference and simple maintenance.

Technical parameters :

• Measurement range: pH: 0.00 ~ 14.00pH,
• mV: -1000mV~+1000mV
• Display information: pH / ORP (mV)
• Output: 4~20mA output, max load 1k
• Temperature compensation: Automatic.
• Transmission signal: 4 to 20mA isolated output.
• Control action: ON/OFF max 220VAC/max3A/max600VA
• Calibration: 2 points
• Environment: 0-60℃
• pH ORP Accuracy: 0.1pH, 1mV
• Temperature accuracy: 0.1℃
• Dimension: 92×92×110mm
• Power supply: 220VAC 50Hz.
