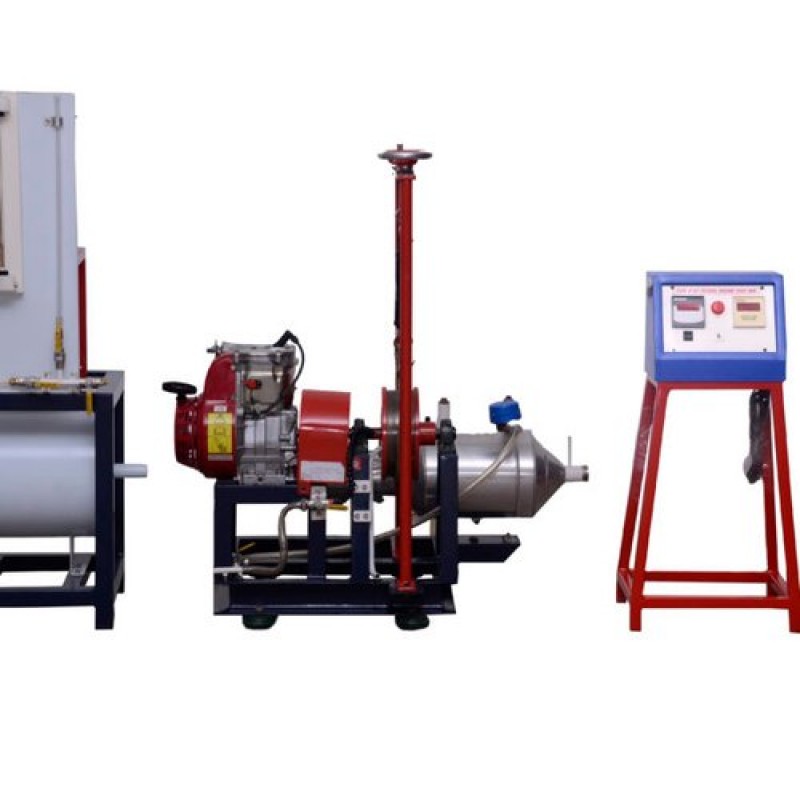

VCR Single Cylinder Four Stroke Dual Fuel Engine Test Rig

Product Details:

Description
 The setup consists of single cylinder, four stroke engine connected to dynamometer for loading. It is provided with necessary instruments for combustion pressure and crankangle measurements. These signals are interfaced to computer through engine indicator for Pθ-PV diagrams. Provision is also made for interfacing airflow, fuel flow, temperatures and load measurement. The setup has standalone panel box consisting of air box, fuel tank, manometer, fuel measuring unit, transmitters for air and fuel flow measurements, process indicator and engine indicator. Rotameters are provided for cooling water and calorimeter water flow measurement. The setup enables study of engine performance for brake power, indicated power, frictional power, BMEP, IMEP, brake thermal efficiency, indicated thermal efficiency, Mechanical efficiency, volumetric efficiency, specific fuel consumption, A/F ratio and heat balance.
• Experimentation/Learning Objectives
 Study of engine performance
• Study of pressure volume plot and indicated power
• Online measurement and performance analysis
• IP, IMEP, FP Indication
• Combustion Analysis
Utilities Required
 Electric Supply: 230+/- 10 V AC, 50 Hz, 1 Phase.
• Computer System: i-3 processor with DVD Drive, Windows 7 and MS Office pre-loaded. One USB slot required in PC for Data Acquisition CARD.
• Water Supply: Continuous, clean and soft water supply @5000 LPH, at 10m. Head, Provide tap with 1” BSP size connection.
• Fuel & Lubricants
Technical Details
• Engine : VCR Single Cylinder Four Stroke Water Cooled Engine, Bore 87.5 mm, Stroke 110 mm, Capacity 661 CC approx. Self start with Diesel Injection Pressure Sensor. Diesel Mode Power : 3.5 kW, Speed 1500 RPM, CR Range 12:1 to 18:1 Petrol Mode : Power 4.5 kW, Speed 1800 RPM, CR Range 6:1 to 10:1
• Dynamometer : Eddy Current Dynamometer, water cooled with loading unit
• Air Box : SS fabricated with orificemeter and manometer
• Fuel Tank : Capacity 15 liters with glass fuel metering column Dual compartment
• Calorimeter : Pipe in Pipe type
• Piezo Sensor : Range 5000 PSI, with low noise cable
• Crank Angle Sensor : Resolution 1 Deg, Speed 5500 RPM with TDC pulse
• Temperature Sensor : RTD Type PT-100 and Thermocouple, K Type
• Temperature Transmitter : 2 wire, I/P RTD PT-100, 0-100 Deg C, O/P 4-20mA, Type 2 wire, Input TC, 0-1200 Deg C, Output 4-20 mA
• Load Indicator : Digital, Range: 0-50 kg, Supply : 230VAC
• Load Sensor : Load Cell, type strain gauge, Range : 0-50 Kg
• Fuel Flow Transmitter : DP transmitter, Range  0-500 mm WC
• Air Flow Transmitter : Pressure Transmitter, Range (-) 250 mm WC
• Rotameter : Engine cooling 40-400 LPH, Calorimeter 25-250 LPH
• An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
