Throttling Calorimeter Apparatus

Product Details:

Brand

saini

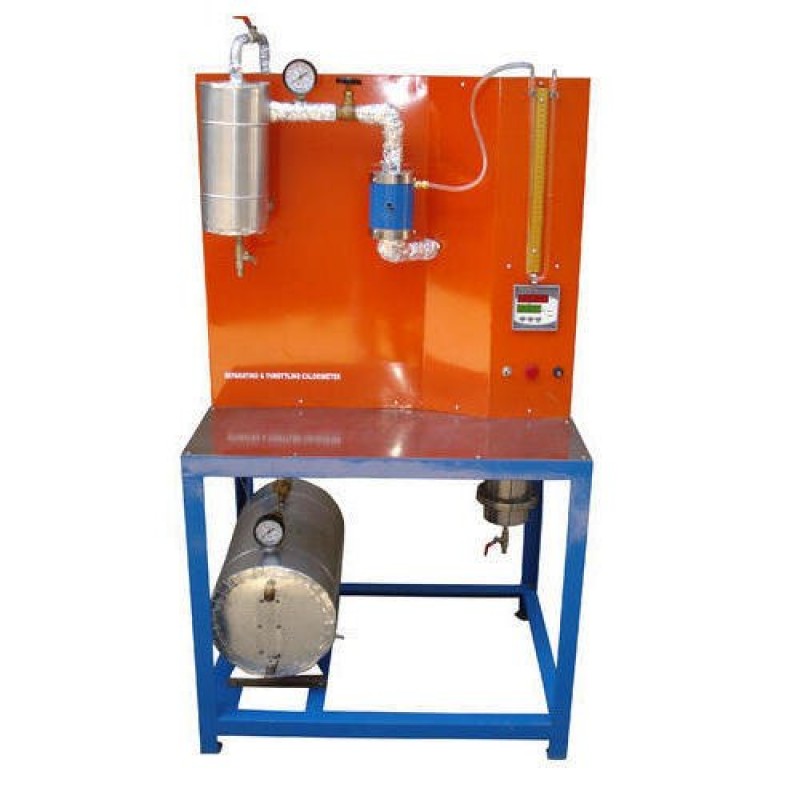

Description THROTTLING CALORIMETER It consists of two concentric chambers, the inner chamber and the outer chamber, which communicates with each other through an opening at the top. As the steam discharges through the metal basket, which has a large number of holes, the water particles due to their heavier momentum get separated from the steam and collect in the chamber. The comparatively dry steam in the inner chamber moves up and then down aging through the annular space between the two chambers and enters the Throttling Calorimeter.
Experimentation/Learning Objectives • To find the dryness fraction of steam.
Utilities Required • Electric Supply: Single Phase, 220 V, 10 Amp. • Continuous Water Supply : 10 LPM Approx. at ½ kg/cm2 pressure
Technical Details • Separating Chamber : Compatible capacity made of Stainless Steel insulated with Ceramic wool with water level indicator. • Heat Exchanger : For condensing steam • Steam Generator : Compatible capacity with digital temperature controller to control the temperature inside the steam generator. • Differentual pressure : By manometer measurement • Steam pressure measurement : By Pressure gauge • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
