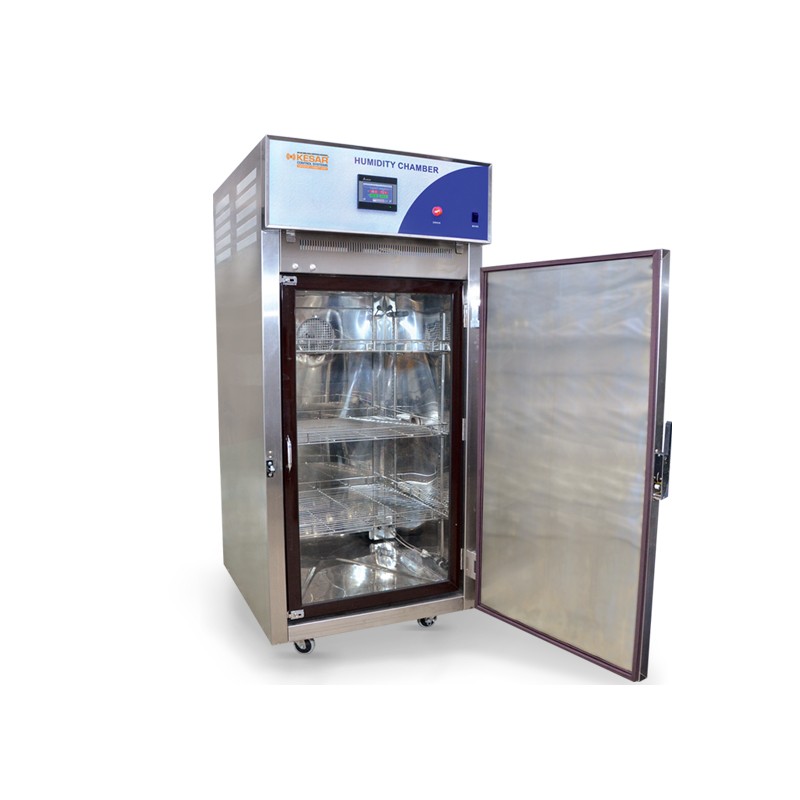

HUMIDITY CHAMBER
CONSTRUCTION :
- Chamber Interior is fabricated of stainless steel with dull finish & exterior is of stainless steel / G.I. Powder coated.
- The inner working chamber is water & vapour tight high grade stainless steel. All seams are arc-welded & passivity for strength & durability.
- FULL VIEW GLASS DOOR
- A multi pane viewing door prevents condensation & allows product view. Inner & outer doors are sealed around the entire perimeter by silicone sponge rubber gasket.
OPTIONAL FEATURES
- Stand by Cooling System
- Stand By Refrigeration System
- Scanner
- GSM Technology
- Hooter System
- Extra Tray
21 CFR PART-11 COMPLIANCE
- Log data, Event data, Audit, Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition.
TRAYS
- Heavy duty solid stainless steel duly electro polished wire mesh type trays are provide which are easy to clean, time & efforts saving, also adjustable for convenience.
TECHNICAL SPECIFICATION :
| Technical Specification | |
|---|---|
| Temperature Range | 20 ℃ to 60 ℃ |
| Humidity Range | 40%RH to 95%RH |
| Accuracy | +0.2 ℃ & +2.0% RH |
| Uniformity | +2.0 ℃ & +3.0% RH |
| Test Suitable for | 25 ℃ & 60% RH, 30 ℃ & 65% RH 40 ℃ & 75% RH, 30 ℃ & 75% RH |
| Specially designed chambers for Low Humidity conditions such as 25 ℃ 40% RH, 40 ℃ 25% RH, 30 ℃ 35% RH | |
| Control System | PLC or PID Based |
MATERIAL OF CONSTRUCTION :
| Models | Material of Construction | |
|---|---|---|
| Interior | Exterior | |
| STD | S.S.304 Dull Finish | G.I Powder Coated |
| GMP | S.S.304 Dull Finish | S.S.304 Dull Finish |
| CGMP | S.S.316 Dull Finish | S.S.304 Dull Finish |
SIZES :
| Models | Capacity (in ltrs.) | Dimensions (W X D X H) | No. of Trays | |
|---|---|---|---|---|
| Internal (mm) Width Depth Height | External (mm) Width Depth Height | |||
| GMP-SC90L | 90 | 450 X 400 X 500 | 600 X 820 X 1050 | 3 |
| GMP-SC227L | 227 | 600 X 630 X 600 | 750 X 1065 X 1180 | 4 |
| GMP-SC325L | 325 | 600 X 630 X 900 | 750 X 1065 X 1480 | 6 |
| GMP-SC400L | 400 | 600 X 630 X 1060 | 750 X 1065 X 1640 | 7 |
| GMP-SC500L | 500 | 600 X 630 X 1350 | 750 X 1065 X 1905 | 8 |
| GMP-SC600L | 600 | 800 X 800 X 950 | 950 X 1265 X 1530 | 6 |
| GMP-SC800L | 800 | 800 X 800 X 1250 | 950 X 1265 X 1830 | 9 |
| GMP-SC1000L | 1000 | 800 X 800 X 1570 | 950 X 1265 X 2150 | 11 |
