HP Series Prep HPCL

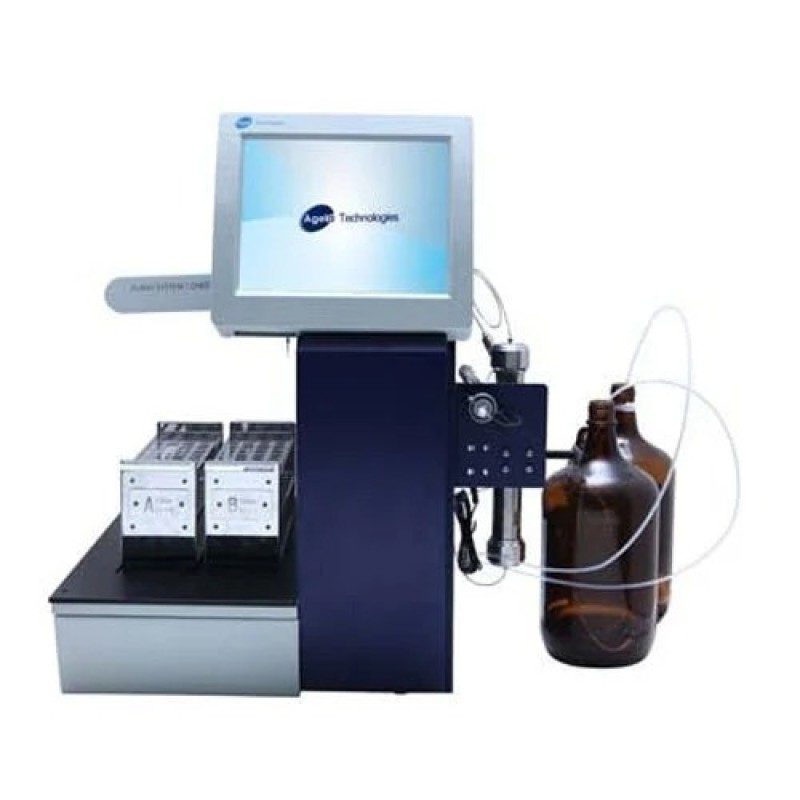

CHEETAH® HP 100 is an automated high pressure preparative LC system from Bonna-Agela Technologies. It is an integrated system featuring binary gradient pump, UV detector and fraction collector. The maximum backpressure of the system is 20 MPa, and the max flow rate is 100 mL/min. The design of the system emphasized small footprint and simple operation. It is a solution to purify complex sample employing high-solutions columns packed with small particle media.

• One point control via touch screen PC
• User friendly interfaces
• Dual wavelength detection/monitor via UV detector, ELSD and RI detector is optional
• Intelligent fraction collecting: All/Volume, manual, slope/threshold and time windows

Application

• Purification of synthetic compounds
• Purification of complex mixture of synthetic compounds
• Isolation of biopolymers such as peptides and nucleotides
• Separation of combichem arrays
• Purification of natural products
