Glass Reaction Cum Distillation Assembly
Product Details :
This is a general purpose batch reaction distillation unit to be operated at atmospheric pressure, or vacuum.

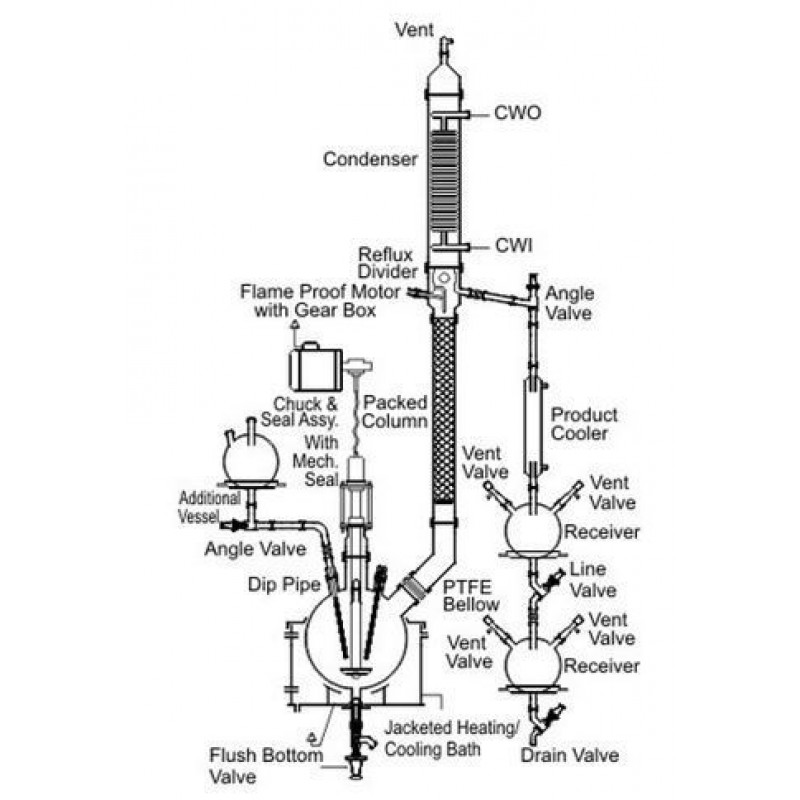

The unit is complete with a spherical vessel drain valve, heating bath, thermometer pocket, liquid addition vessel, agitator packed column, a coil condenser product cooler, and twin receivers.
Refer selection chart for different options available for heating system vessel, stirrers and drives speed regulators and receivers. The unit is available in vessel size of 5, 10, 20, 50, 100 and 200, 300 Litre.
| Unit Cat.Ref. | R C | Bath KW | A V | A L | C HTA M² | Cooler HTA M² | Receiver Size |
|---|---|---|---|---|---|---|---|
| FRU20 | 20L | 4.5 | 2L | 80DN | 0.35 | 0.1 | 2L,5L |
| SFRU50 | 50L | 6 | 5L | 100DN | 0.5 | 0.2 | 5L,10L |
| SFRU100 | 100L | 9 | 10L | 150DN | 1.5 | 0.35 | 10L,20L |
| SFRU200 | 200L | 12 | 20L | 150DN | 1.5 | 0.35 |
