Glass Fractional Distillation Assembly
Product Details :
This is a general-purpose batch distillation unit to be operated under a vacuum. Vapours enter into the packed column and get fractionated. Vapours of low boiling liquid enter into the condenser, get condensed and collected into the twin receivers. From the final receiver distillate can be removed without breaking the vacuum.

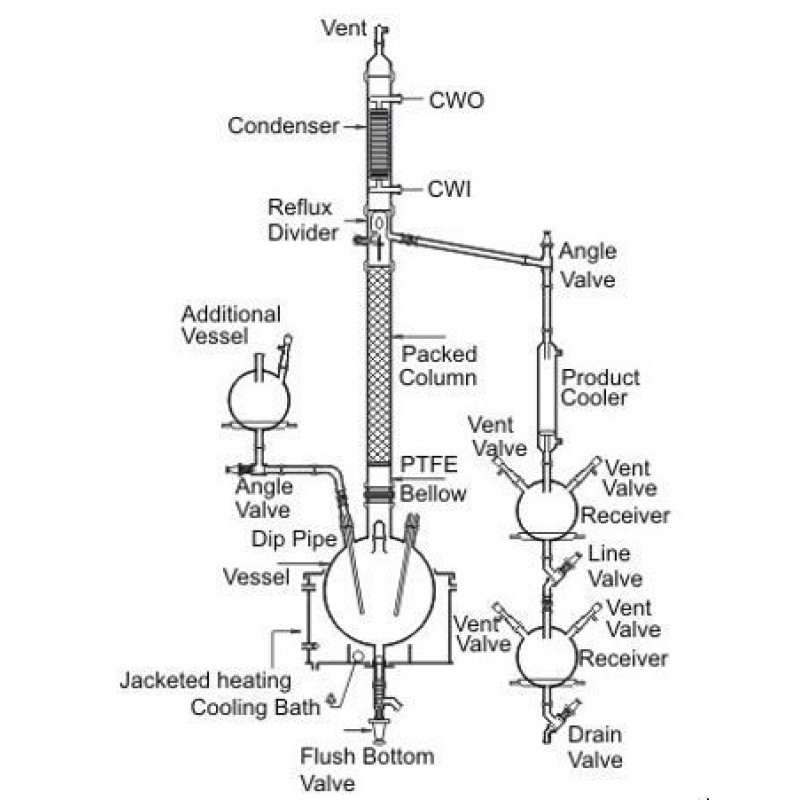

The unit is complete with a spherical vessel, drain valve heating bath, thermometer pocket, liquid inlet, packed column, a coil condenser, product cooler, and twin receivers.
Refer selection chart for different options available for heating system vessel and receiver. The unit is available in vessel size of 20, 50, 100 and 200 and 300 Litre
| Unit Cat.Ref. | Reactor capacity | Bath KW | Packed Column | Vapour Line | Condenser HTA M² | Cooler HTA M² | Receiver Size |
| SFDU20 | 20L | 4.5 | 80mm x 1m | 80DN | 0.35 | 0.1 | 2L,5L |
| SFDU50 | 50L | 6 | 100mm x 1m | 100DN | 0.5 | 0.2 | 5L,10L |
| SFDU100 | 100L | 9 | 150mm x 1m | 150DN | 1.5 | 0.35 | 10L,20L |
| SFDU200 | 200L | 12 | 150mm x 1m | 150DN | 1.5 | 0.35 | 10L,20L |
| SFDU300 | 300L | 15 | 225mm x 1m | 225DN | 2.5 | 0.5 | 20L,50L |
| L |
