S.S. Bottles

Product Details:

SS Bottles are typically of volume 125 ml to 1 l. SS Bottles are made of stainless steel 304 and are closed using spring-loaded valves as expansion devices.The size of sample required depends on the tests to be carried out and, for DGA, the likely concentration of gas in the sample, the analytical technique and the sensitivity required. For DGA after factory tests, a 250 ml contain has been found convenient.

Sr.no	Tests	Volume
1	Water	20ml
2	DGA(Dissolved Gas Analysis) Test	25ml-100ml
3	Particles	100ml
4	Dielectric Dissipation Factor	200ml
5	Other Chemical and Physical Test	250ml
6	Breakdown Voltage	500ml-1000ml

Cat. No	Description
TI-OSB-0300	300ml TOSIN Stainless Steel Bottle
TI-OSB-0500	500ml TOSIN Stainless Steel Bottle
TI-OSB-1000	1000ml TOSIN Stainless Steel Bottle
TI-OSB-1500	150ml TOSIN Stainless Steel Bottle
TI-OSB-2000	2000ml TOSIN Stainless Steel Bottle

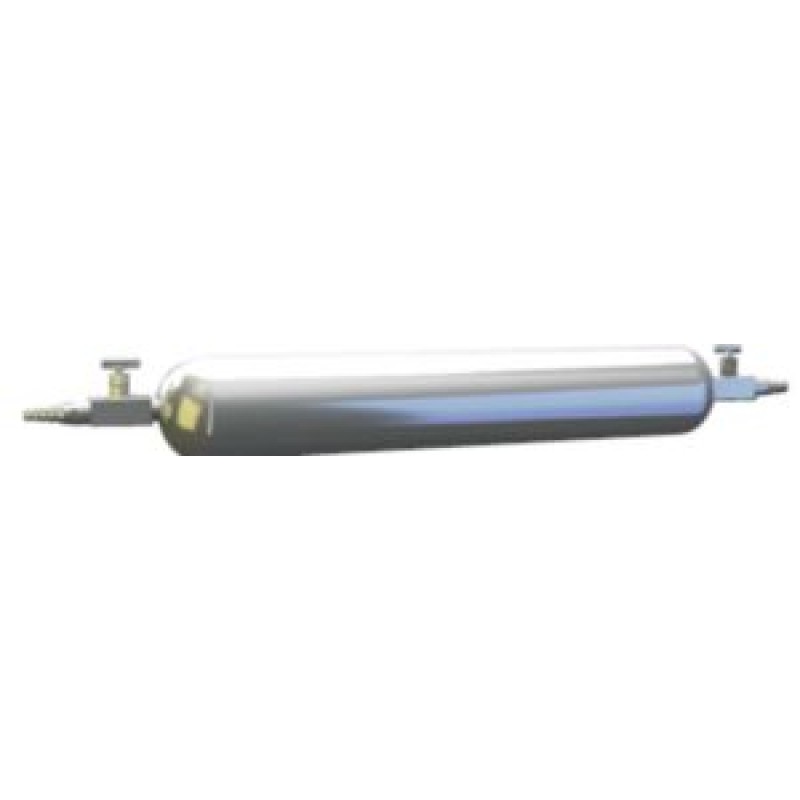

Features TOSIN SS Bottles

• TOSIN Transformer Oil sampling SS Bottles are made of Stainless Steel S.S.304. These bottles

• The assembly comprises of S.S. Needle valve (1/4” BSP) & Adapter fitted on either side of the bottle. The needle Valves are 100% leak proof & are tested at pressure of 300 PSI.
• The bottle can be sealed gas tight with the help of needle valves.
• All accessories fitted with the bottle are also made of Stainless Steel.
• Tested Pressure from 1500 to 2500 PSI
• Draws the Oil In Positive Pressure
• As per IS 9434:1992
• The bottle is designed to ensure that loss of hydrogen will not exceed 5% per week.
• Test certificate provided along with the product
• TOSIN Transformer Oil sampling SS Bottles can also be made of Stainless Steel S.S.316 on customer’s request
• TOSIN Transformer Oil sampling SS Bottles can be Custom made as per customer’s TOSIN Accessories

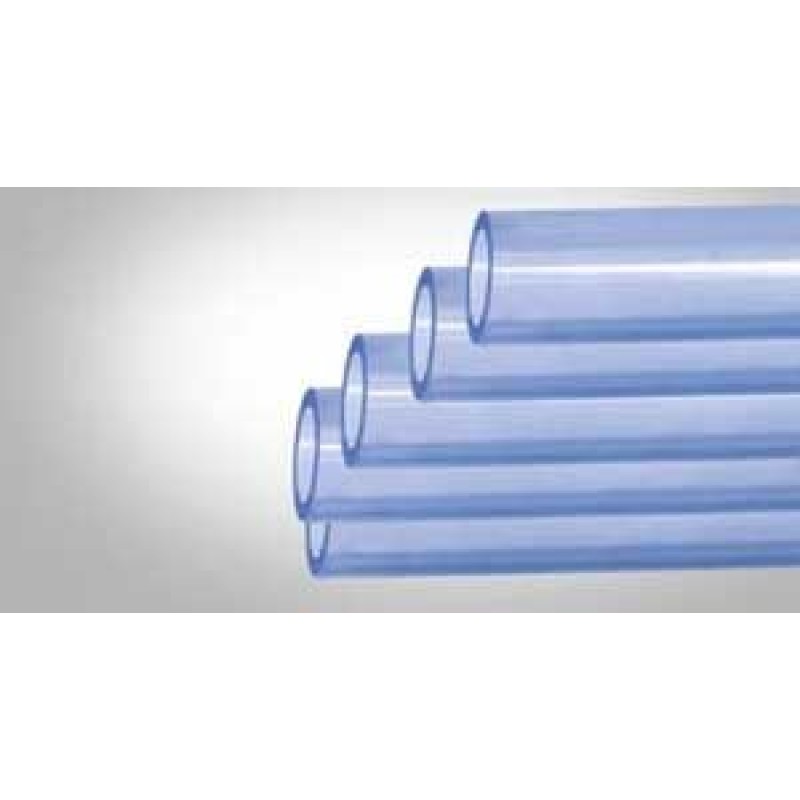

TOSIN PVC Transparent Pipe

Cat. No	Description
TI-OSBC-0100	TOSIN PVC Transparent Pipe of 1 Meter
TI-OSBC-4000	TOSIN PVC Transparent Pipe of 1 Mete

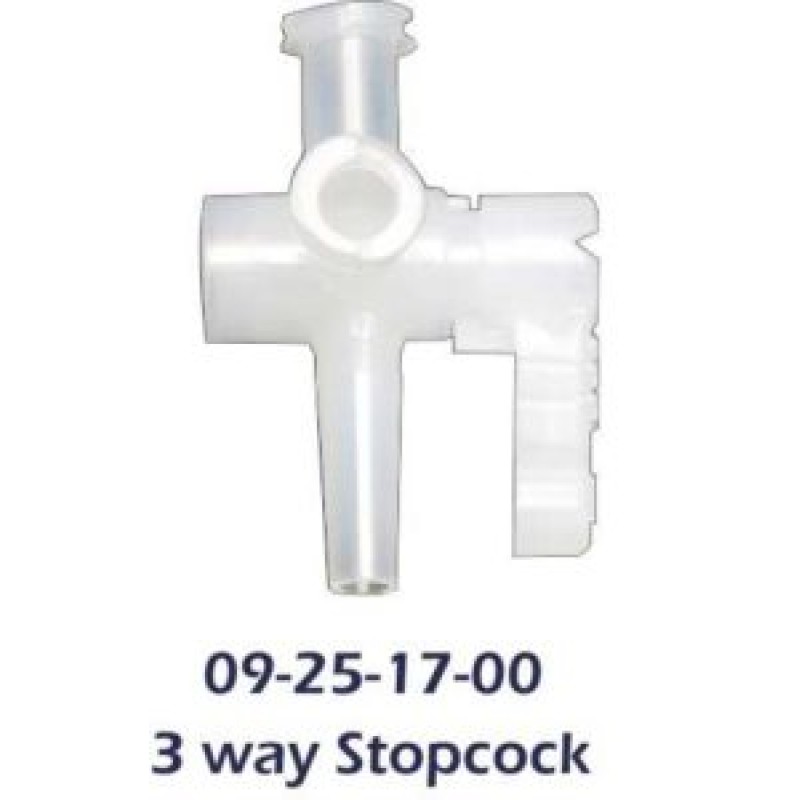

TOSIN 3 Way Nylon Stopcock
