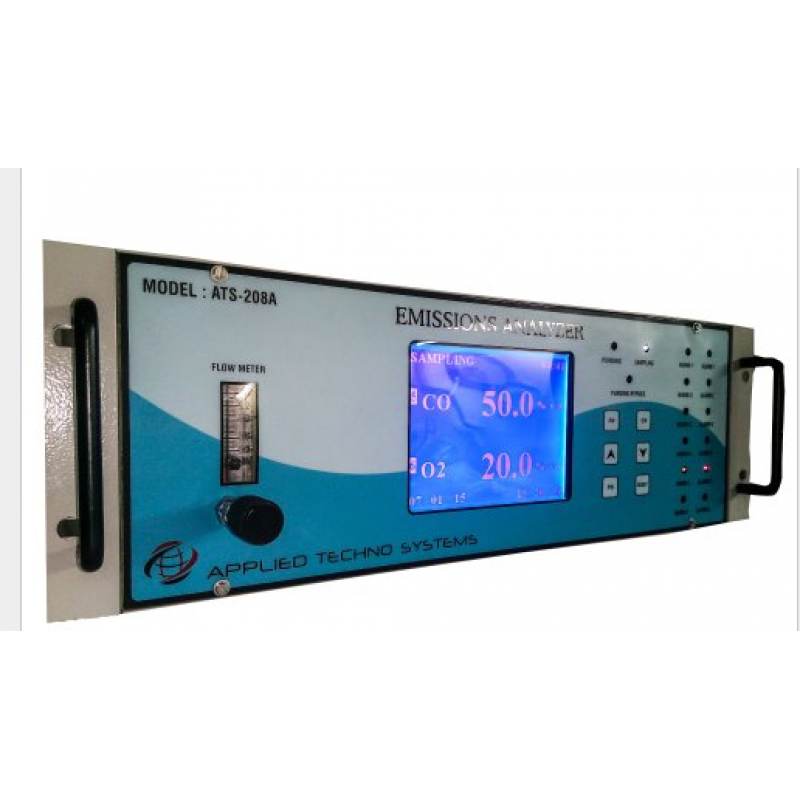

Producer Gas Analyzer
Product Details:

Model Name/Number	ATS-208A
Usage/Application	Industrial
Power Supply	230 V AC or Lithium Rechargeable Battery
Application	Industrial Use
Brand	Applied Techno Systems
Automation Grade	Automatic
Display Type	Digital
Material	ABS Plastic

Gasification is a process where a fuel or feedstock is ‘cooked’ in low oxygen conditions. The equipment that carries out this whole process is usually called a gasifier.Different zones inside the gasifier support drying, pyrolysis, combustion, and reduction reactions. The whole process produces gas that contains primarily carbon monoxide and hydrogen. These gases can be carried away before they combust, and then used elsewhere for energy. The gas is often called synthesis gas or syngas for short. It has also been referred to in the past as producer gas or town gas.Producer Gas Analyzer has been designed considering the flexibility required in the environments that characterize syn gas and bio-mass applications.

• The analyzer uses high-stability infrared sensors for the simultaneous measurement of CO, CO2 and CH4 . In addition, the analyzer can also be supplied with a non-consumable, long-life thermal conductivity cell for H2 that compensates for the interference effects of CO, CO2 and CH4 . This ensures that H2 will always read 2correctly regardless of the background gas composition. Paramagnetic sensor can be used for O2 analysis as an option.
• All sensors are temperature-compensated for maximum analytical stability.
