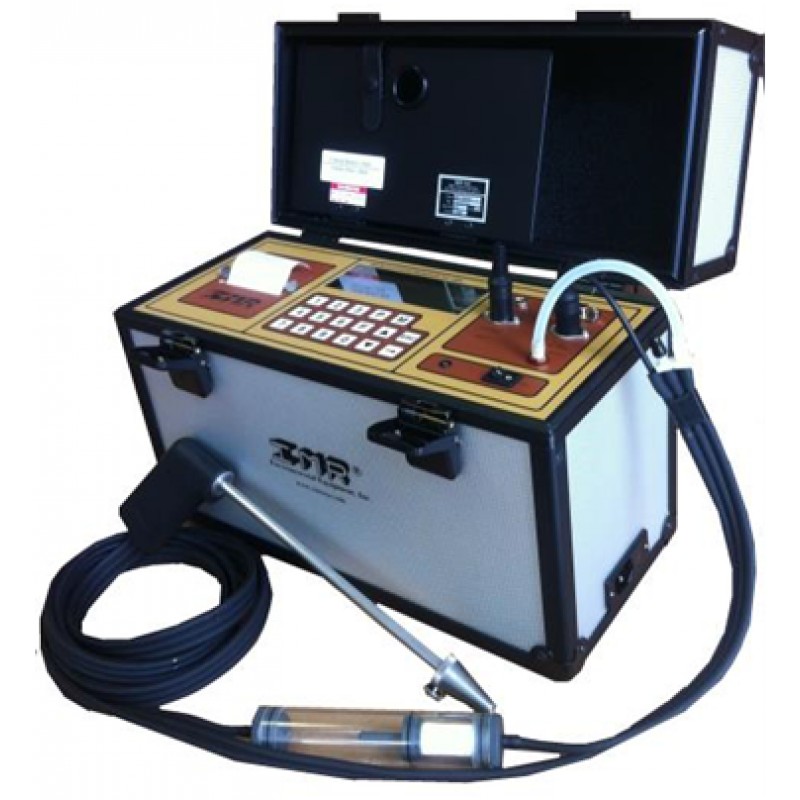

Flue Gas Analyser - IMR 2800-IR

Gas Analyser

Product Features

• Latest sensor technology for a more accurate measurement and longer life time
• Improved interior design for easier service and better unit protection
• Continuously and simultaneously measuring up to 18 parameters
• Larger display for a better reading

Technical Specifications

•  Portable combustion gas analyzer housed in a rugged aluminum case
•  Simultaneous measurement of O2 Oxygen, NO2 Nitrogen dioxide,CO Carbon Monoxide, SO2 Sulfur dioxide, NO Nitric oxide, TG Flue-gas temperature,TA Ambient Air temperature
•  Calculation of following parameters
•     Losses / Efficiency NOx Nitrogen Oxides
•     Excess Air / Lambda CO2 Carbon Dioxide
•  Automatic zero calibration
•  Integrated self-check program
•  Simultaneous display parameters on the illuminated display
•  Printer with programmable print out cycles
•  Standard deviation and average value calculation
•  Draft measurement with optional upgrade for differential draft and velocity measured with a Pitot tube
•  Unit selection : ppm – mg/Nm3  – mg/Nm3 (ref O2)
•  Gas sampling probe E – length 0.8 ft (250mm), hose 8 ft (2.5m)
•  Rechargeable battery with charger
•  Power supply 110V or 230V

OPTIONAL FEATURES

•  HCl, N2O, CL2, H2, NH3, HC or H2S measurement
•  CO2, CH4/HC and N2O NDIR sensors available
•  Speed RPM
•  Prepared for high temperature measurement (up to 2732 °F / 1500 °C)
•  Gas sampling probes with different lengths
•  Soot measurement
•  Pitot Tube
•  Gas Flow m/s
•  Additional Instruments: RPM Meter, Soot Meter

Product Applications

• Boilers, Burners, Engines,Turbines, Cars, Trucks, Plants, Chemical Industries, Steel Plants, Refineries, etc
