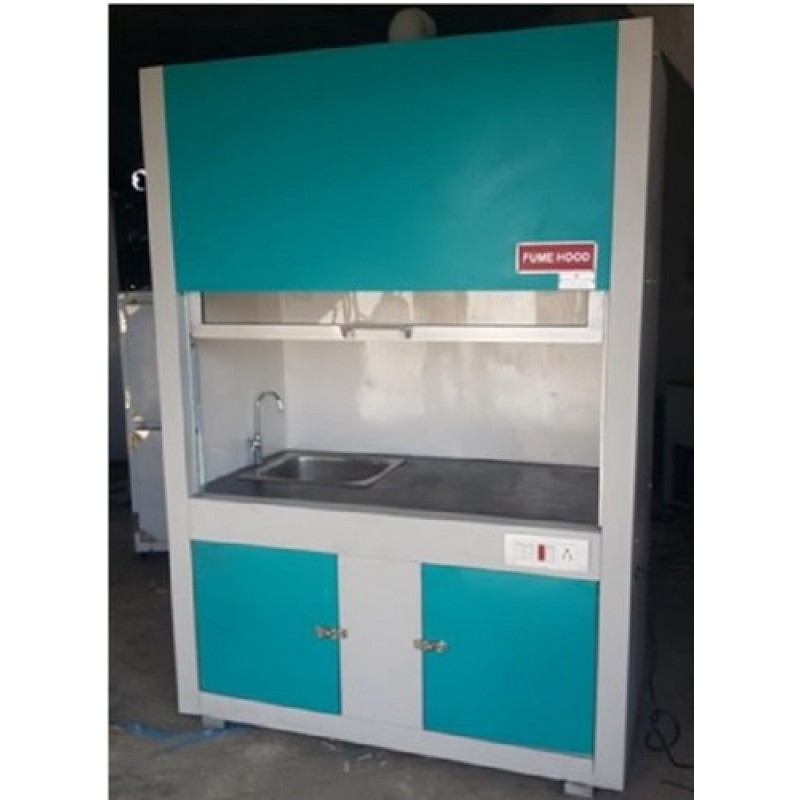

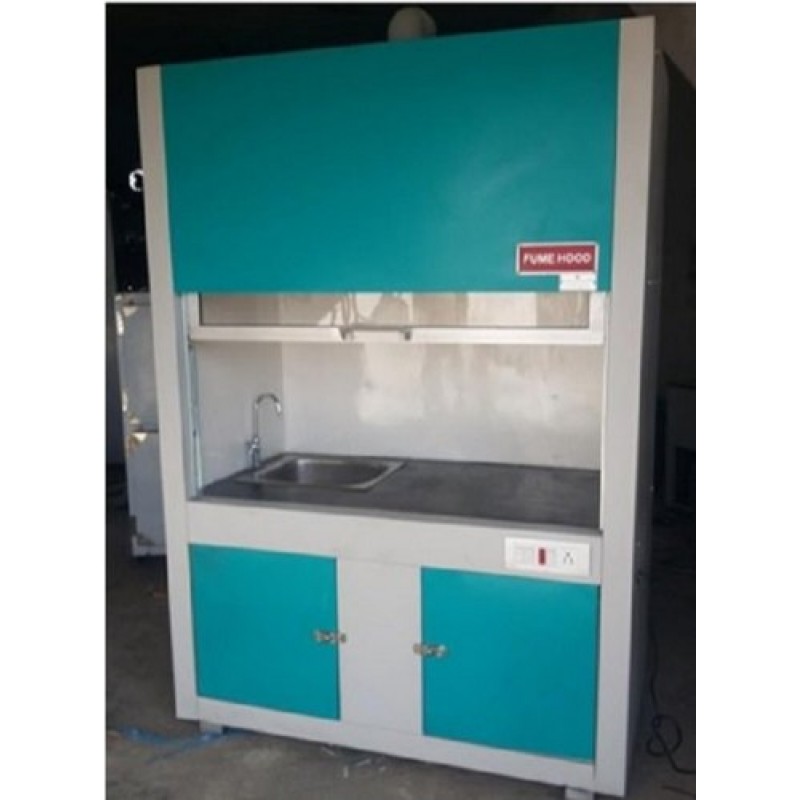

Fume Hood

Product Details :

The Fume Hood should be chemical and heat resistant and Non-Corrosive. It should be designed as per NABL norms strictly and should be completely noiseless and vibration free . It must be completely leak proof and must maintain a negative pressure inside the chamber. It should be designed for distillation and high temperature reaction involving acid.

Features :

• Inner Dimension (mm) - 1200 (L) x 700 (D) x 1100 (H)
• M.O.C – Outer material should be chemical resistant metallic GI / MS with multi layer powder coating.
• The interior must have minimum 3 layers explosion proof lining, resistant to extremely toxic and corrosive fumes as well as heat resistant up to minimum 700°C flame heat up to 2 hr. Inner main surface having coating mixture of oxy-carbide (tantalum carbide, hafnium carbide and calcium silicate)
• All corners & edges of the fume hood must be leak proof.
• The work top the fume hood inside the chamber must be heat & chemical resistant Granite 18mm with 15mm skirting on all side to avoid skirting.
• Sash: Full View, Chemical and leak proof Toughened Glass panel with shutter and vertical sliding glass. The bottom panel of the sash should have gasket.
• It must provide facility to hang litmus paper to test leakage and the air contamination.
• Type of Fume Hood: Floor Model
• Auxiliary socket:  15/5 Amps two on each side
• Auxiliary fitting:  Gas/Vacuum/ Water control Valve and made up of Non reactive material.
• Sink: Sink with connections, control Valve and made up of Non reactive material.
• Duct: Complete FRP.
• Exhaust System: Exhaust blower/ motor assembly of 2 HP, The motor housing & the impeller must be either Teflon Coated or FRP.
• Switch for exhaust fan: Yes.
• Light: Fluorescent + Switch.
• Earthing required: Yes (Needed)

• The system must have Display of humidity & temperature & air velocity (m/s) with alarm at variation in air velocity.
• Exhaust system: Noise/sound free high capacity blower with minimum 2HP 3phase, Blower Motor with suitable fitting and ducting to the roof top.
• The system should be complete in all respect with FRP ducting. Complete installation including ducting shall be within the scope of supplier.

• • Request



Additional Information:

• Delivery Time: 10 days
