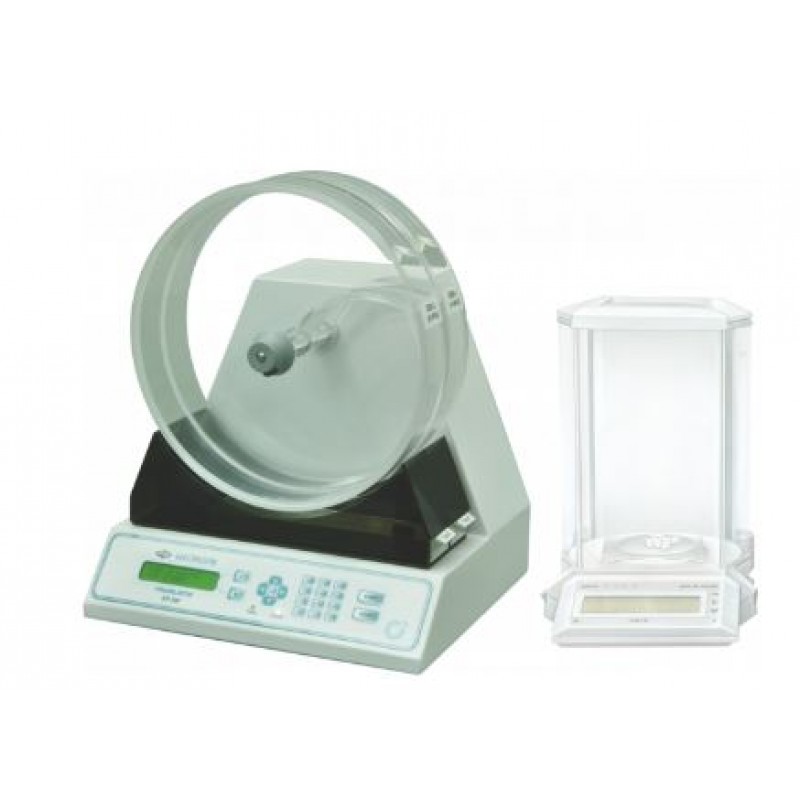

Friability Tester with Weighing Scale Interface-EF-2W
Product Details :
- Complies with USP, IP, Ph. Eur. specifications
- Dual drum friability tester
- Alphanumeric keypad to enter the product and sample information
- Test data for ten different drugs can be saved as protocols
- Security with 50 users (Login/Password)
- Programmable counter and timer modes of operation
- Variable speed from 20 to 60 RPM
- Weighing scale interface
- Real time clock
- Unique front loading system of the drums
- Filling of samples without removing the drum
- Supports ELECTROLAB ADTM (Patented) and Abrasion drum with lamellas
- Automatic discharge of the test samples into the tray
- 10o tilt of the drum with the bench top as per USP
- Snap-click knob to hold the drum
- Calculation of result like % friability and weight loss
- Continuous validation of RPM and count
- Complete test validation report with % friability for both drums
- Unique power failure detection, resumes the test after power recovery
- Serial port for PC connectivity and test validation report printout
Specifications :
Model | EF-2W |
Speed | Variable speed from 20 to 60 RPM |
Accuracy | +0.5 RPM |
Timer | Settable from 1 sec. to 9 hrs. 59 min59 sec. |
Counter | 1 to 9999 revolutions |
No. of drums | 2 |
Power Supply | 220/230 V A.C., 50/60 Hz, 20VA |
Display | 24 x 2 character LCD |
