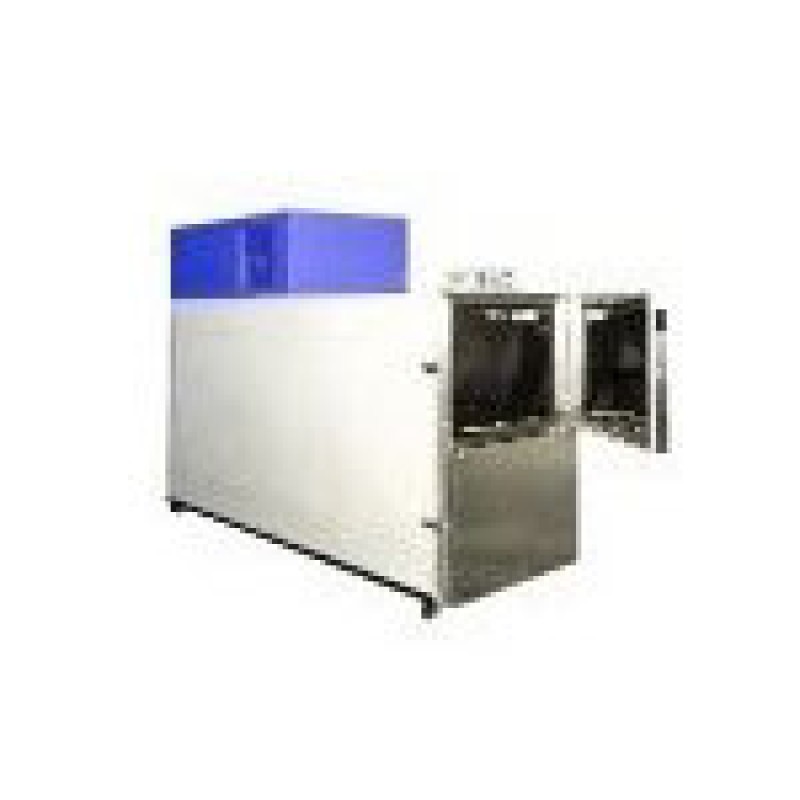

MORTUARY REFRIGERATOR REW-140

Product Details :

Mortuary Storage Cabinets are designed for storing of cadaverous under cool temperature conditions in order to prevent decomposition. These cabinets are provide an ideal cold storage environment for the preservation of vaccines, medicines, reagents, specimens and are most essential for Hospital, Airports, Railway Stations, research institutes, disaster management and Medical Colleges etc.
Mortuary Storage Cabinets have been designed in response to the precise requirement for preserving Temperature sensitive products.
Available in various capacities to hold Single Body to Six Bodies. Hermetically sealed compressor serves refrigeration unit, to maintain temperature range of -2°C to -5°C , you can depend on Mortuary Storage Cabinets where temperature is constantly maintained at the set temperature, with better uniformity and accuracy. This unit comes with easy to install feature and requires no special maintenance. This unit is totally self-contained and ruggedly designed.

TECHNICAL SPECIFICATION & ORDERING INFORMATION:-

Model (Mortuary Refrigerator)	#REW-1	#REW-2	#REW-3	#REW-4	#REW-6
Capacity	Single Body	Two Bodies	Three Bodies	Four Bodies	Six Bodies
Temperature	-2oC to -5oC
Controller	Microprocessor / Micro-controller based temperature controller
Temperature Display	Digital LED with SV and PV
MOC Outer	PCRC/ PCGI sheet duly painted
MOC Inner	Stainless steel (SS-304 Grade)
Door	Standard hinged door with double gasket seal between the doors.
Insulation	High grade PUF INSULATED between outer and inner chamber for minimal thermal losses
Body Trays	Telescopic/Pull out trays made up of SS/ GI sheet
Interior Lighting	Interior fluorescent lighting
Castors	Castors for minimal effort mobility
Refrigeration system	Superior and heavy duty air cooled refrigeration system.
Compressor	CFC FREE ECO FRIENDLY
Condenser	Highly efficient condenser with automatic condensate evaporating system.
Evaporator	Internal evaporator system Forced draught
Refrigerant	Non-CFC/HCFC environmental friendly based on compressor capacity.
Air Circulation	Forced air circulation to maintain chamber uniformity.
Door Lock	Provided for safety and security of specimen.
Power Supply	220 / 230 Volts AC or 430/440 Volts AC, Three Phase Supply

OPTIONS

  Weekly Chart Recorder.
  Power back-up, in event of power failure for continuous display of chamber temperature (for controller and chart recorder) and for maintaining temperature graphs
