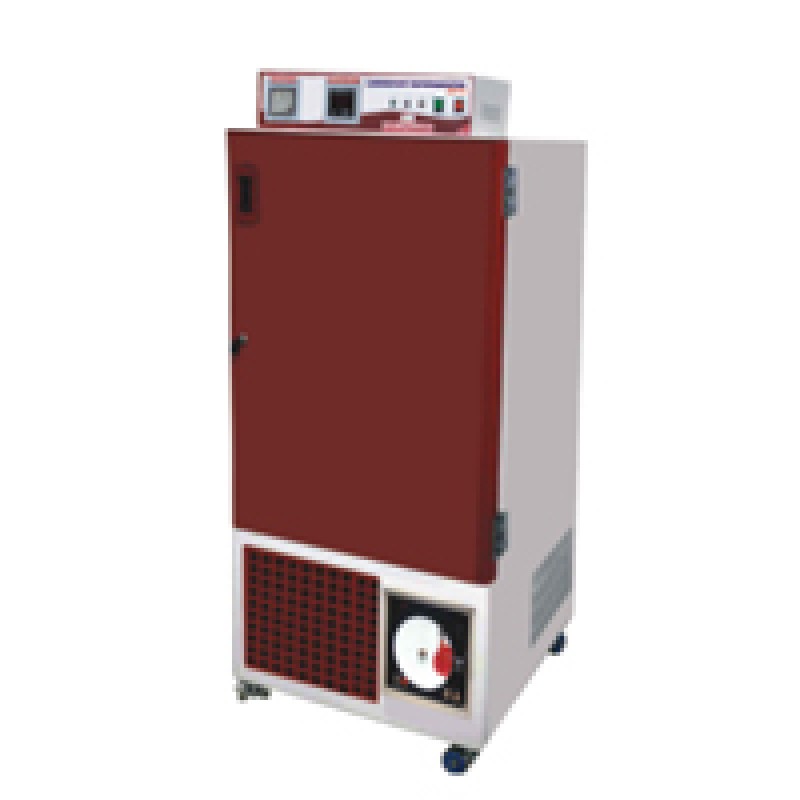

LABORATORY REFRIGERATOR REW-138

Product Details :

• Available in various capacities, designed to fit a variety of space and storage requirements. The refrigerators are equipped with heavy-duty compressors to maintain a vital operation temperature of 2^oC to 15^oC . Superior refrigeration technology and precise temperature control to ensures reliable storage.

• Foamed -in- place CFC free PUF insulation ensure temperature stability and reduced energy temperature.

• Micro-controller controls the internal temperature between 2^oC to 15^oC with an accuracy of ± 0.5^oC.

• The cooling is effected by a hermetically sealed CFC FREE ECO FRIENDLY COMPRESSOR.

CONSTRUCTIONAL AND SALIENT FEATURES

• Outer chamber is made of CRC Sheet duly power coated and Mounted on caster wheels for easy mobility.

• Inner chamber and holding trays are made up of stainless steel Sheet.

• High grade PUF INSULATED between outer and inner chamber for minimal thermal losses.

• Temperature can be set/ maintained from 2oC to 15oC (Arrangement available only to pull down temperature) with an accuracy of +0.5^oC

• Unit is fitted with specially designed CFC Free hermetically sealed refrigeration system for uniform and effective cooling of the chamber.

• Flush fitting insulated double walled door has magnetic gasket and plexi glass inner door for easy view of inside chamber without distributing the set temperature.

• Inside door operated illumination is provided for visibility of bags kept inside the chamber.

• Microprocessor based Digital Temperature Indicator-Cum-Controller with LED/LCD display for Set Value (SV) & Process Value (PV) with in-built HI/LOW Temperature deviation alarm. (as ordered).

• CFC FREE ECO FRIENDLY COMPRESSOR

• To work on 220/ 230 volts A.C. Supply.

TECHNICAL SPECIFICATION & ORDERING INFORMATION:-

#REW-3 (D)	85 ltrs	3 Cuft
#REW-4 (D)	112 ltrs	4 Cuft
#REW-6 (D)	171 ltrs	6 Cuft
#REW-10 (D)	280 ltrs	10 Cuft
#REW-12 (D)	340 ltrs	12 Cuft
#REW-15 (D)	420 ltrs	15 Cuft
#REW-16 (D)	450 ltrs	16 Cuft
#REW-18 (D)	500 ltrs	18 Cuft
#REW-23 (D)	650 ltrs	23 Cuft
#REW-39 (D)	1100 ltrs	39 Cuft
#REW-50 (D)	1410 ltrs	50 Cuft

OPTIONS

  Weekly chart recorder.
  Power back-up, in event of power failure for continuous display of chamber temperature (for controller and chart recorder) and for maintaining temperature grap
