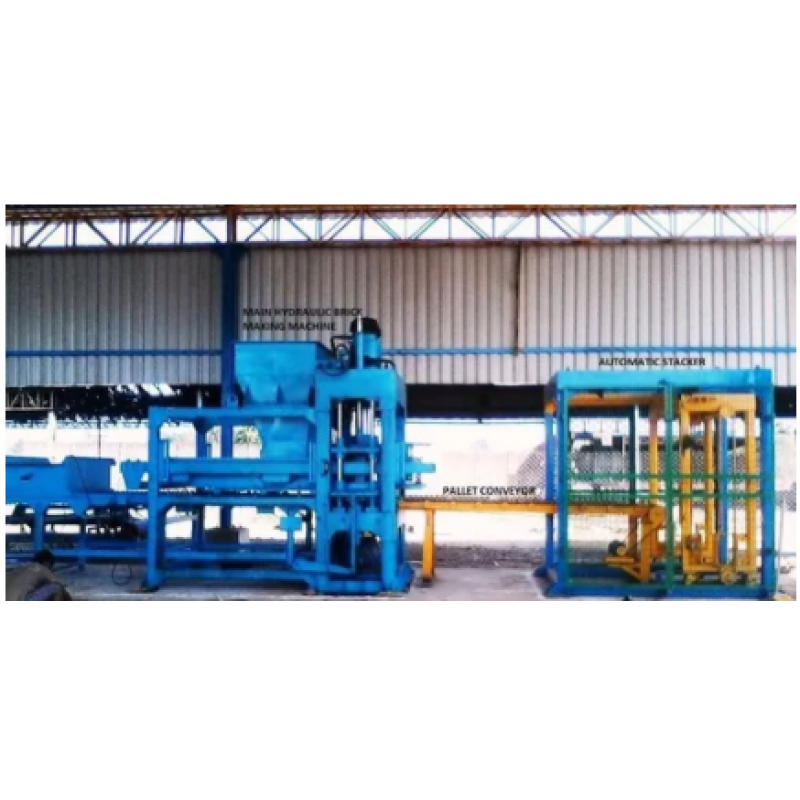

FLY ASH BRICK PLANT RBM-15

Product Details:

• General Use Brick Plant
• Automatic Yes
• Feature High Durability
• Color Blue
• Warranty Yes
• Supply Ability : 1 Unit Per Month

Product Description :

FLY-ASH/CONCRETE  BRICK /BLOCK  MAKING YDRAULIC PRESS FULLY AUTOMATIC M/ C. (RBM-15)

Electric Motor 15HP 3PH of Crompton / Havells, Complete With Power Pack (Pump of Douty/Boss &Valve of Yuken/ Poly Hydran . Electric Panel (With Messung Systems PLC,) Limit Switch/Proximity Sensors, Hopper,  Oil Tank Capacity 400 Lit. Cylinder Made by Honed Tube. Piston Is Hard Chrome. Production Capacity  18000 TO 20000 Bricks/Shift of standard size. 5 H.P. Mould Vibrator, 6”x8”x12” Solid Block- 5000 Blocks/Shift.

PAN MIXTURE :

1 No. “Reva” Pan Mixer having capacity of 1000 Kgs. fitted with 2 Nos. heavy C.I.Rollers, fitted with changeable bottom wear plates fitted with mixing and discharge  blades,having special alloy steel tips,complete with quality Worm Reduction Gear Box Elecon/Radicon make powered by 25 H.P./Electric Motor of Kirloskar/Crompton/Havells make With starter.

CONVEYOR :

1 No. “Reva” Belt Conveyor for loading and unloading the material of the Pan Mixer of app. 31 ft.and powered by 3 H.P.Electric Motor of Kirlostar/Crompton make fitted with quality gear box with starter.The conveyor is fitted with rubber top nylon conveyor belt and is moving on frictionless idlers.

MOULD :

(15 Cavity). 15  Bricks/Stroke  with Frog (Name in Brick).

Pallet Trucks  :

• 3 Nos. “Reva” Pallet Trucks are fitted with 03 nos. pneumatic tyres and manual dragging arrangement with lift capacity of 1000 Kgs.
• Automatic Material Feeder, Hydraulic Operated
• Automatic Pallet Feeder, Hydraulic Operated
• Finished Fly-Ash Bricks Pallet Conveyor , powered by 0.5 H.P. Geared Motor.
