Fluidized Bed Characteristics Apparatus.

Product Details:

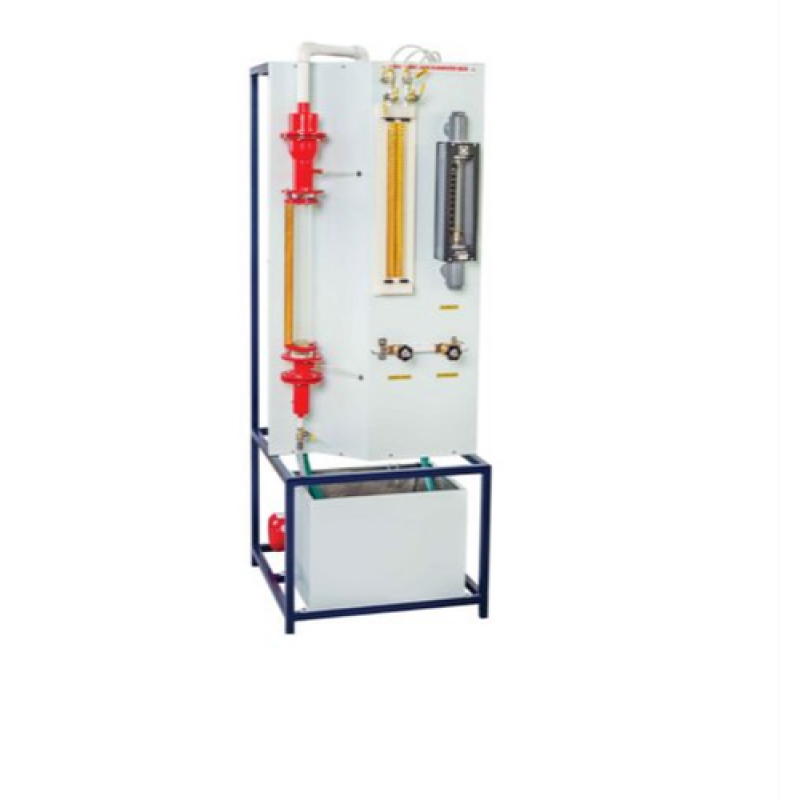

Description The setup consists of a glass column with fluidizing material i.e. beads, S.S. mesh to support the beads and with calming section. Pressure drop across fluidization can be measured by manometer. The setup studies in fluidization characteristics and relationship between the velocity of the fluid and pressure drop per unit length. The apparatus is close circuit type provided with suitable capacity tank, FHP pump, necessary pipeline valves and a Rotameter to measure the flow rate of fluid. The setup is fitted on a MS frame painted with good quality paint
Experimentation/Learning Objectives • To study fluidization characteristics. • To determine velocity of fluid and pressure drop per unit length of bed.
Utilities Required • Electricity supply: 1 Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts. • Floor Area: 0.75 m x 0.75 m. • CCl4 with iodine pallets for manometer :100 ml
Technical Details • Column : Material Borosilicate Glass with both end made of Stainless Steel Dia. 48 mm (approx.), Height 750 mm (approx.) • Packing : Glass Beads • Water tank : Material Stainless Steel, Capacity 30 Ltrs. • Water Circulation : FHP Pump, Crompton/Sharp make. • Water Flow Measurement : By Rotameter • Pressure Drop Measurement : Manometer • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
