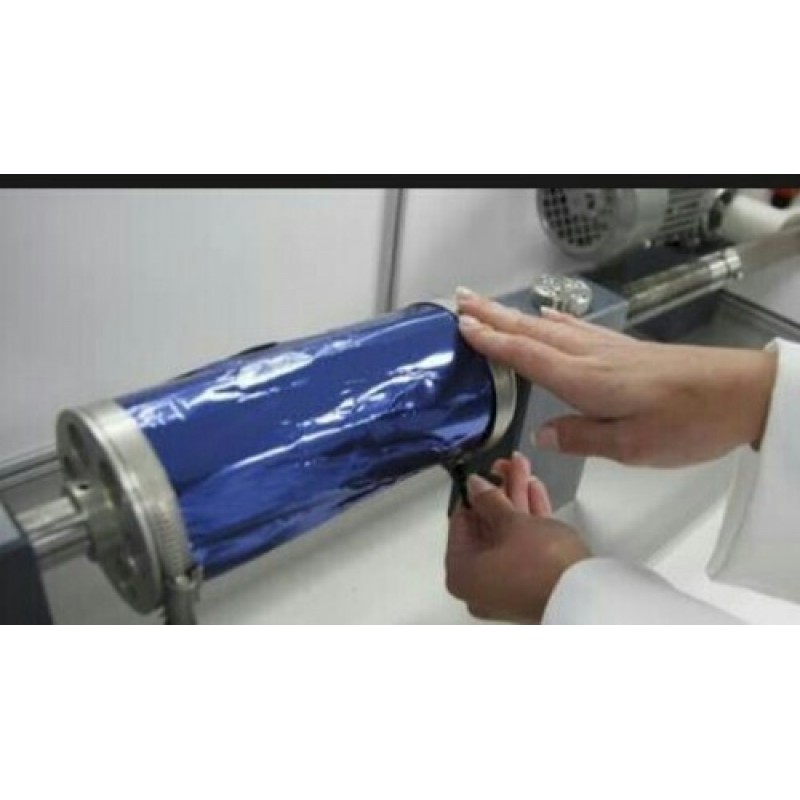

Flex Tester

Product Details :

• FLEX TESTER MACHINE
• Mack :-D.S.P
• Model :- Flex tester
• The machine is find out  flexibility strength of packaging items,Rubber and woven textile  and firber.
• We are having different types of Flex  test Machines as per standard the classification according the motion and moment like
• Single Direction :-linear or Angular
• Two Direction :-linear or Angular
• Two Direction :- linear  with Angular
• Three Direction :- linear with Angular
• Three Direction :- linear with Angular

Technical specification :

• One of them
• The machine design as per IS:-7016-4/ISO-78.54
• Number of Disk :- 2 No.
• Axis :- same.
• One Disk lenear moment :- 70 mm.
• Rate of Motion:- 152 strokes/ min.
• Second Disk :- 90° twist.
• Rate of twists :-200 twist/min.
• Sample Holder :-Easy to Clamp.
• Digital time control Range : - 99.9 hours.
• Accuracy :- 1 sec.
• Circle counter :- 99999 No.
• Accuracy :- 1 No.
