Fixed Output DC Regulated Power Supply
Product Description
Fixed Output DC Regulated Power Supply

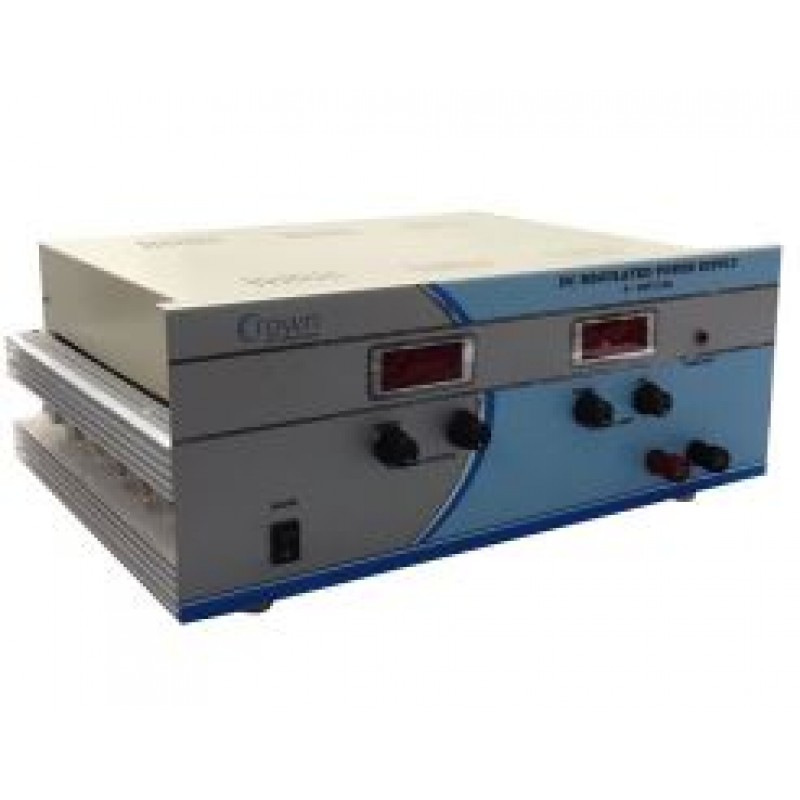

“CROWN” made DC REGULATED POWER SUPPLY are constant Voltage and Constant Current type supplies , have high regulation for Load and Line Voltage variation . The supply are protected against short circuit and over load . The output current can be controlled to any value from 0 to maximum.
SPECIFICATION :
CODE | OUTPUT VOLTAGE | OUTPUT CURRENT (MAX) |
CES-505 | 0 -30V | 0 -30A |
CES-500 | 0 -30V | 0 -20A |
CES-501 | 0 -30V | 0 -10A |
CES-502 | 0 -30V | 0 -5A |
CES-503 | 0 -30V | 0 -2A |
CES-504 | 0 -30V | 0 -1A |
CES-506 | 0 -60V | 0 -1A |
CES-507 | 0 -60V | 0 -2A |
CES-508 | 0 -60V | 0 -5A |
CES-509 | 0 -60V | 0 -10A |
CES-510 | 0 -120V | 0 -1A |
CES-511 | 0 -120V | 0 -2A |
CES-512 | 0 -120V | 0 -5A |
Specification
INPUT VOLTAGE : 230V ± 10% AC 50 Hz
OUTPUT VOLTAGE : Continuously Variable with Coarse and Fine Control
OUTPUT CURRENT : Settable with Coarse and Fine Control
LOAD REGULATION (CV) : ± 0.05 % ± 3mV From no load to full load
LOAD REGULATION (CC) : ± 0.05% ± 1 mA From no load to full load
LINE REGULATION (CV) : ± 0.01 % ± 3mV for ± 10% variation input voltage
LINE REGULATION (CC) : ± 0.01% ± 1mA for ± 10% variation input voltage
RIPPLE : Less than 1 mV
METER : Two Digital meters to monitor the output voltage and current
PROTECTION : Against short circuit and over load
POWER SUPPLY ARE ALSO AVAILABLE AS PER CUSTOMER SPECIFICATION
