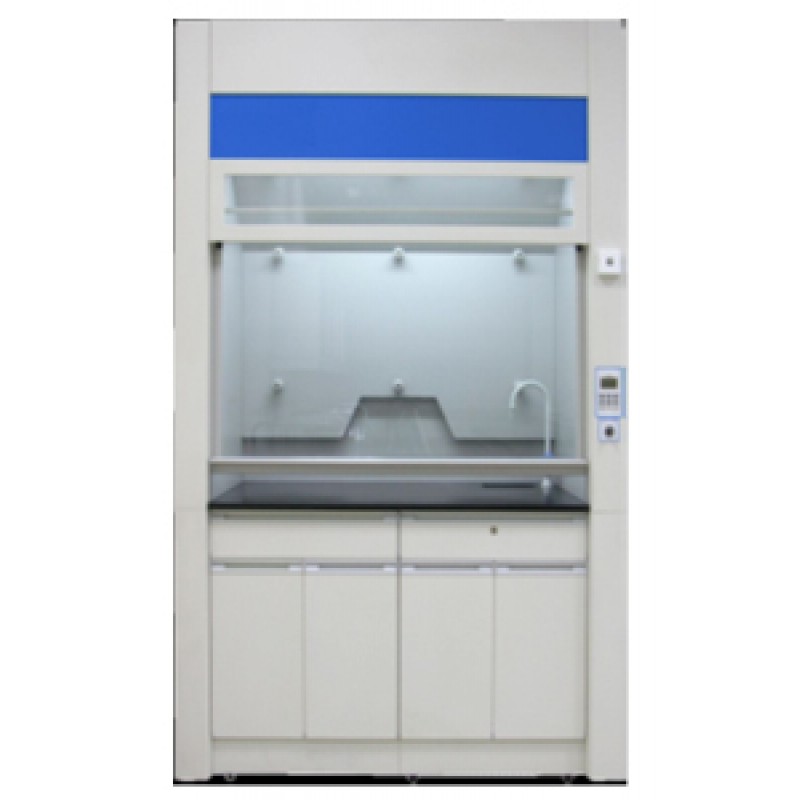

FUME HOOD
Click Image for Gallery
FUME HOOD

FUME HOOD

Product Details :

Dimensions Avaliable :


4”x2”x 2”,   5”x2”x 2”,   6”x2”x 2”, 7”x3”x 3”,   8”x3”x 3”
Note: Also customized at any size.

Material of construction
16 Gauge (1mm) galvanized sheet with 70 - 80 micron epoxy
powder coating. Fully molded with 4 - 5mm Fibre Re-enforced Plastic Resin Material (FRP) – Acid & Fire Proof

Door
Single vertical, sliding, 5mm Toughened glass door
Ducting
Rigid ducting of FRP of 150mm dia, 4mm thick FRP Pipe.
Powered By
1⁄4 HP, 1440 RPM, 1 Phase Centrifugal Blower & Motor of Flame Proof.
Baffle
A Stable, Non adjustable baffle with a single slot on the back baffle to aid in distributing the flow of air into and through the hood .The baffle shall
be spaced out from the back liner and shall be removable for cleaning

Impeller
Dynamically balanced FRP Impeller.
Centrifugal blower


Silent high efficiency remote blower consisting of continuous
rating motor and chemical resistant impeller .

Sash
The sash shall be of Vertical rising frame .The bottom of sash frame shall have a full length handle. The sash shall be counter balanced with weights to prevent tilting and binding during operation .suction capacity : 800-1000CFM
Bottom Arrangements
18 Guage galvanized sheet with epoxy powder coating.
Color
Standard - Ivory/Blue, can also be customized as required.
Worktable
Worktable: 18 ± 1mm thick black granite top.
Amenities
1 No .4 Feet CFL Tubes of 20 Volts will be provided. The hood superstructure fully wired it also has 2 No’s Electrical sockets and switches (230V,5/15A,50Hz). For easy access of cables from fume hood to electrical sockets.
Oval sink dimension
10” x 3”, can also be customized as required

Features :

  • Durable and chemical-resistant construction- High-performance centrifugal blower
  • Powder Coated MS /SS MOC Ductless Design
  • Double-wall construction Easy to clean surfaces
  • Vertical or horizontal sliding sash Efficient fluorescent lighting
  • Energy-saving blowers CE & ISO certified
  • A Stable, Non-adjustable baffle with a single slot on the back baffle to aid in distributing the flow of air into and through the hood. The baffle shall be spaced out from the back liner and shall be removable for cleaning.
