Watch Dog Retriever and Pup Weather Stations
Product Details :
Wireless sensor network that allows growers and researchers the ability to…
- Monitor crop and soil microclimates for:
- Soil moisture/irrigation scheduling
- Insect and disease pressures
- Frost/temperature alerts
- Plant growth
- Additional sensor inputs
- Transmit data in rolling/complex topography
- Collect site specific data with one system

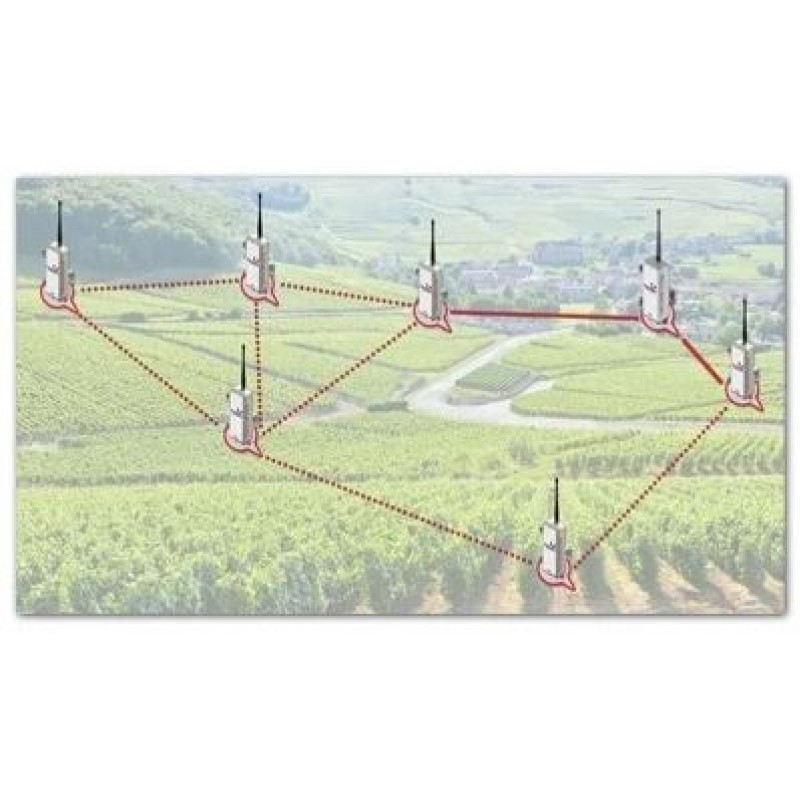

- Mesh networks are "self-healing," since the network automatically finds the fastest and most reliable paths to send data, even if nodes (Pups) are blocked or lose their signal
Applications for Plant Management
• Monitor frost temperatures for real-time decisions to protect crops
• Track soil moisture and EC in numerous locations for better irrigation practices
• Record temperature and humidity for decisions regarding disease and insect pressure
Network Components
WatchDog Retriever
Retriever logs sensor data from its network of Pups (max 16 Pups per network).
- Single button operation: switch modes, download data, upload configuration, and check battery status
- Tri-colored LEDs indicate mode, battery level, data communication status, and configuration status
- Non-volatile memory preserves your logged data, even when the batteries are removed
- Transfer data or configuration information via flash drive or direct PC connection
- Internal flash memory on the Retriever will hold approximately 6 months of data for a 10 Pup network using 15 minute logging intervals
- Spectrum-supplied USB flash drive will hold several years of data at the Retriever for a 10 Pup network using 15 minute logging intervals
- 3.5mm stereo port for computer connection USB cable (included)
- AUX port for wireless (DataScout Cellular or WiFi modem) communication connection
- Includes six non-rechargeable AA batteries (8 months typical life)
- DC port for optional AC/DC power adapter (Max 17VDC)
- Optional solar package includes rechargeable battery pack (2200 mAh, 7.2V NiMH), and 5W solar panel
- Retrievers are available in both 900 MHz (US customers) and 2.4 GHz bands (international customers)
- Retriever & Pups Launch Utility software included on USB flash drive
WatchDog Pups
Each Sensor Pup within the network is compatible with a diverse number of sensors and offers flexibility by allowing the grower to monitor the sensor inputs they require.
- Pups are available in 3 types: Sensor Pup, Station Pup, and Repeater Pup
- Single button operation: check battery status, signal strength, and join sensor network
- Tri-colored LEDs indicate battery level, signal strength, and data communication status
- Includes six non-rechargeable AA batteries (8 months typical life)
- Communication range of 2,500 ft (about 1/2 mile), line-of-sight installation recommended between Pups or Retriever
- Pups are available in both 900 MHz (US customers) and 2.4 GHz bands (international customers)
WatchDog Sensor Pups
- Connect up to 4 external sensors via 2.5mm stereo-plug
- Can monitor high, low, current, and average values for each sensor during each logging period
WatchDog Station Pups
- Connects to your existing WatchDog 2000 Series Full and Mini Weather Stations
- Sends all Weather Station sensor data to your Retriever network
- No external sensors, can only be connected to another device
