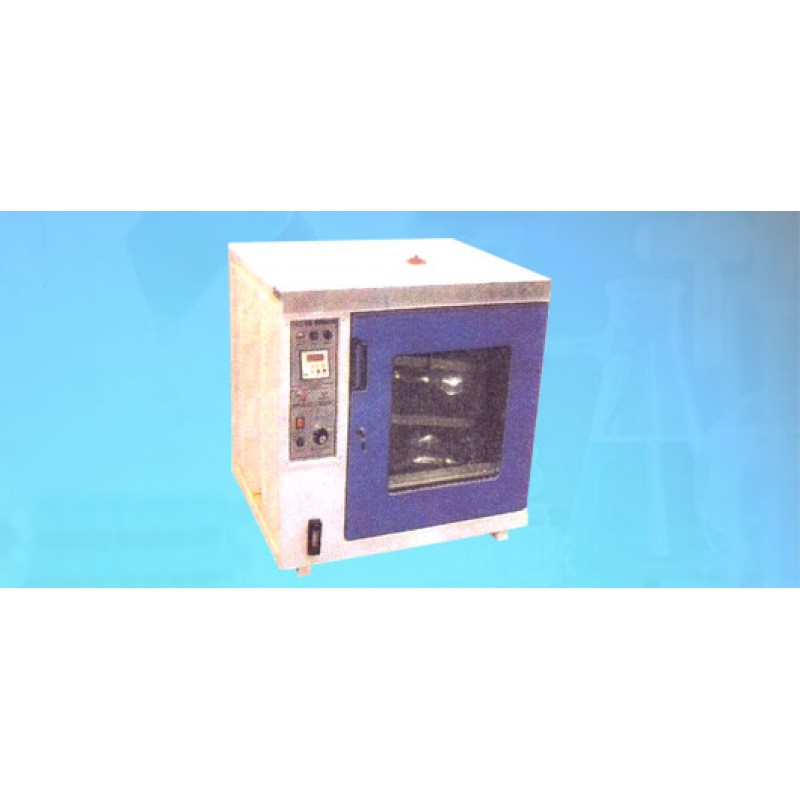

These units are double walled with outer made of mild steel duly powder coated and inner chamber made of stainless steel (88-304 grade). The gap between the walls is filled with high grade mineral wool for minimum thermal loss. Temperature range from ambient to 80° C is controlled through Microprocessor Based Digital Temperature Indicator cum Controller with an accuracy of + 0.5°C. Front door is with double glass viewing window to facilitate inspection of inner chamber.

These units are provided with a manual tilting device to title the tray holding eggs. These egg incubators are available in two models one with manual ON/OFF type humidity switch (humidity not controlled) with a water tank fitted with immersion heater at base. The other model has HUMIDITY CONTROL through a HUMIDI8TATA from 55% to 95% RH and humidity is generated through a sophisticated technique by forced air circulation (water vapour) inside the chamber through a air duct. A separate water bath with automatic temperature control is fitted with circulating pump below the side control panel. To work on 220/230 volts AC supply.

S.S.1.52 (A) Other details same as HUMIDITY Controlled egg incubator (M8W - 233) these units are fitted with a geared motor and an automatic 24 hours timers for automatic tilting of the trays loaded with eggs. Both Egg and Poultry Incubators are avialable in following capacities.

• (a) To hold 50 eggs.

• (b) To hold 100 eggs.

• (c) To hold 200 eggs.

• (d) To hold 250 eggs.
