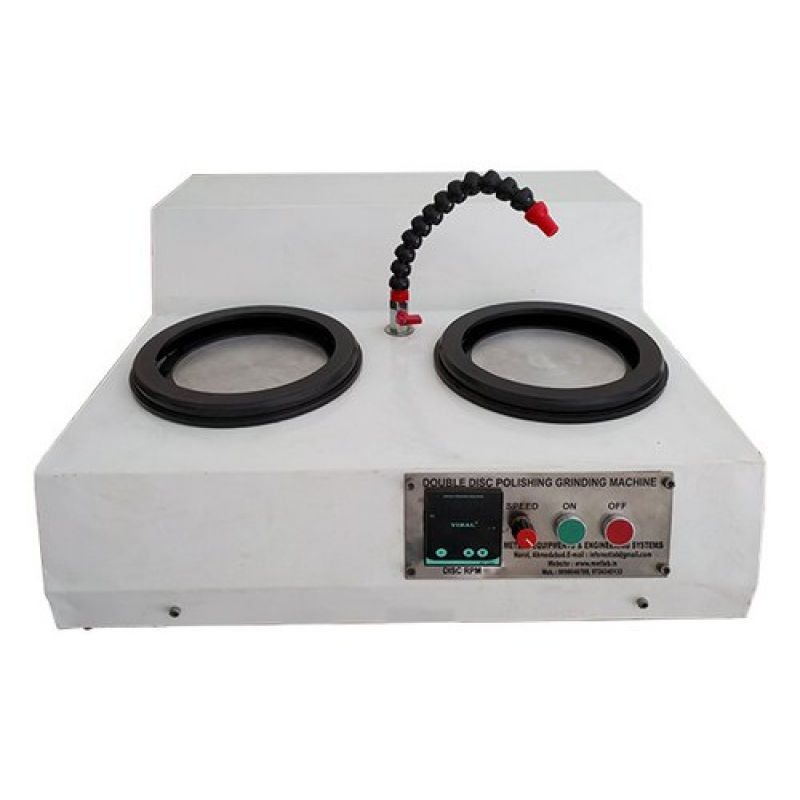

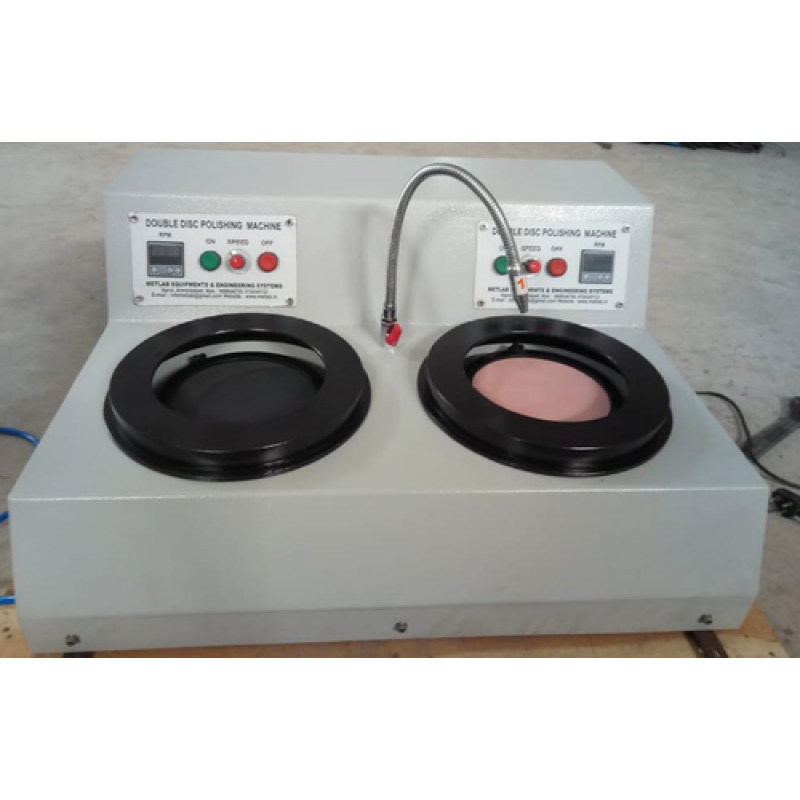

Double Disc Polishing Machine
Product Details :
Brand | fine testing |
Automation Grade | semi automatic |
Power | single phase |
Model Number | DDPM |
Automatic Grade | Semi-automatic |
Machine Capacity | 1400 RPM |
Speed | 50-1440 RPM |
Voltage | single phase |
Disc Diameter | 8" |
Material | ms |
I Deal In | New Only |
Metallography specimen polishing machine is suitable for the polishing of the specimen grinded. The specimen surface is very smooth after processing and can be used to observe and measure the metallography structure of specimen under microscope.
Specifications :
- Two 8 Inch Aluminium discs over which polishing paper or cloth can be stretched
- Variable speed from 50 -1440 RPM
- Digital RPM Display
- AC Drive for smooth speed change
- 1 HP High torque AC Motor Single Phase
- Water inlet/outlet for wet Polishing .
- Flexible water jet with control valve
- Complete Powder Coated Body for Corrosion resistant
- Paper & Polishing Cloth holding Ring
- Front control panel with ON-OFF Switch & for change the speed
- Power Supply : 220 Volt , 50 HZ
