DoseView 3D

Product Details :

• An Intuitive Path to Commissioning QA

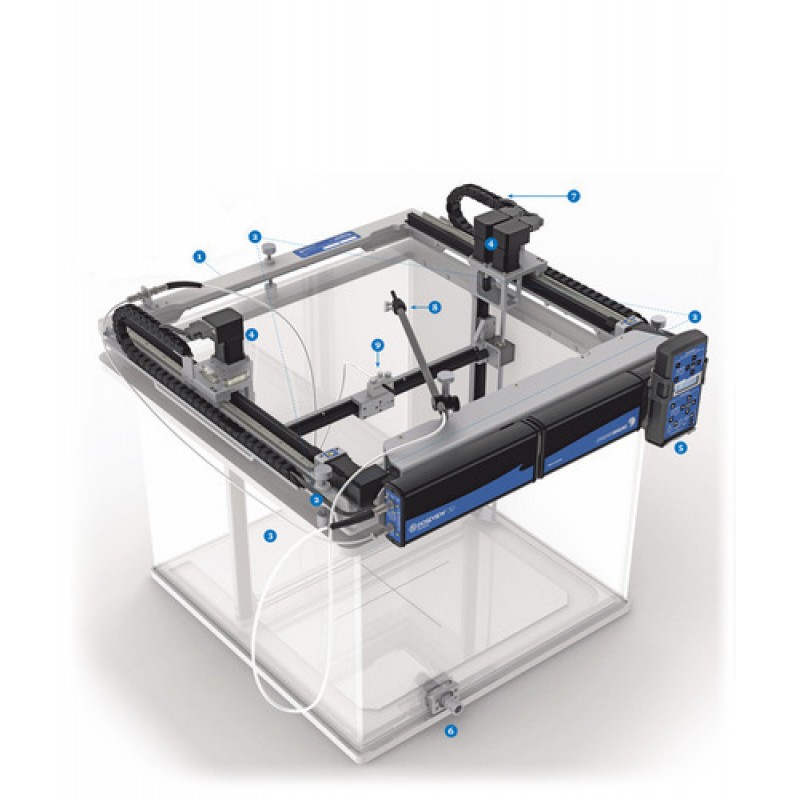

• The DoseView 3D is a 3-axis water scanning phantom that fuses robust hardware with easy-to-use software for superior beam commissioning and quality assurance measurements.
• Built for Consistency


1.Robust Construction

   Manufactured with a rigid, one-piece cast aluminum frame and stainless steel leadscrews.

2.Precise, Three-Point Leveling

   Three leveling screws are mounted above the scanning volume, making leveling easy even when the phantom is filled.

3.Fewer Cables, Faster Setup, Better Data

   Reduced detector cable length lessens settling time and opportunity for cable leakage.

4.Durable, Accurate Stepper Motors

   5 stepper motors maintain superior precision over the phantom’s lifetime.

5.Convenient, Wireless Pendant

  An intuitive wireless pendant allows for easy vault operation without restricting movement.

6.Automatic Phantom Drain

7.Keep cables organized during testing

   Cable carriers keep the motor connections compact and unobtrusive.

8.Reference Detector Holder

9.Sample Detector Holder

   Position holders horizontally or vertically while maintaining a consistent origin location using the Detector Alignment System.
