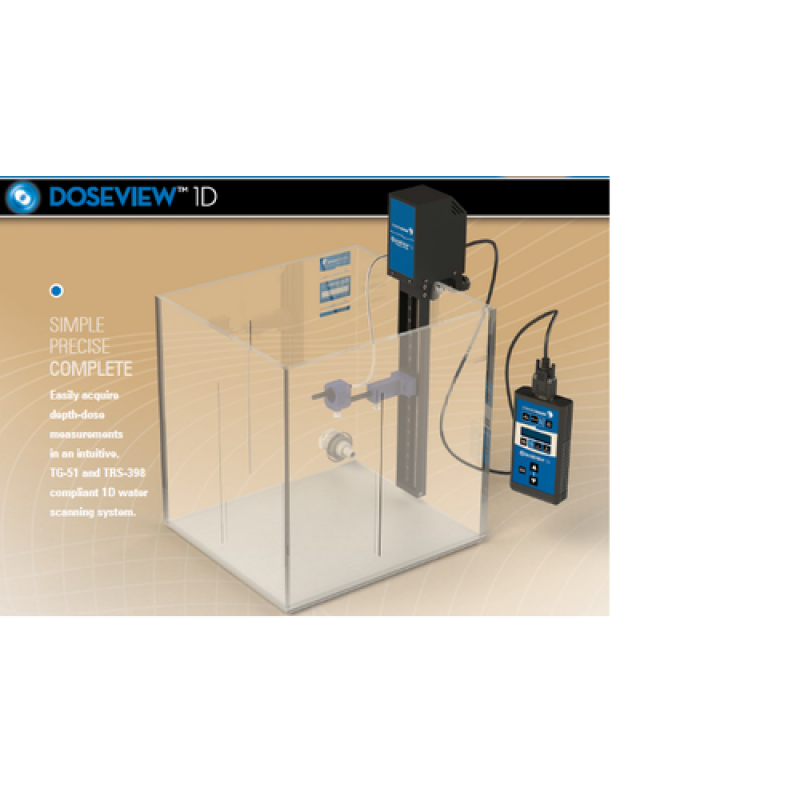

DoseView 1D

Product Details :

• 0.05 mm Accuracy for Consistent QA
• Superior 0.05 mm accuracy of position and repeatability over entire travel distance produced by leadscrew shaft.

Features & Benefits Easy Operation with Handheld Pendant

• Establish origin position and return to origin with the press of a button.
• Three convenient positioning modes: fast, slow and step (customizable from 0.01 mm to 100 mm).
• One-touch toggle between cm/mm.
• Phantom Available in Two Sizes:

                    34 cm x 30 cm x 36 cm

                    42 cm x 40 cm x 36 cm

Water-Equivalent Bracket Fits Range of Detectors

Adaptable chamber bracket fits most thimble ion chambers and rigid stem parallel plate chambers.

Intuitive Depth Dose Collection with DV1D Software

• Expedite TG-51 and TRS-398 compliant data collection.
• Remotely adjust settings, conduct measurements and view data in real time.
• Automatic collection of profiles for all energies
• Automated ratio-based acquisition when using the SuperMAX or two MAX 4000 Electrometers.
